Fiber Optic/Ethernet Carrier Board

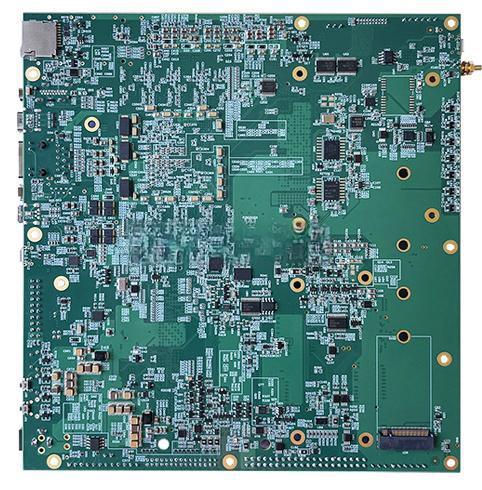

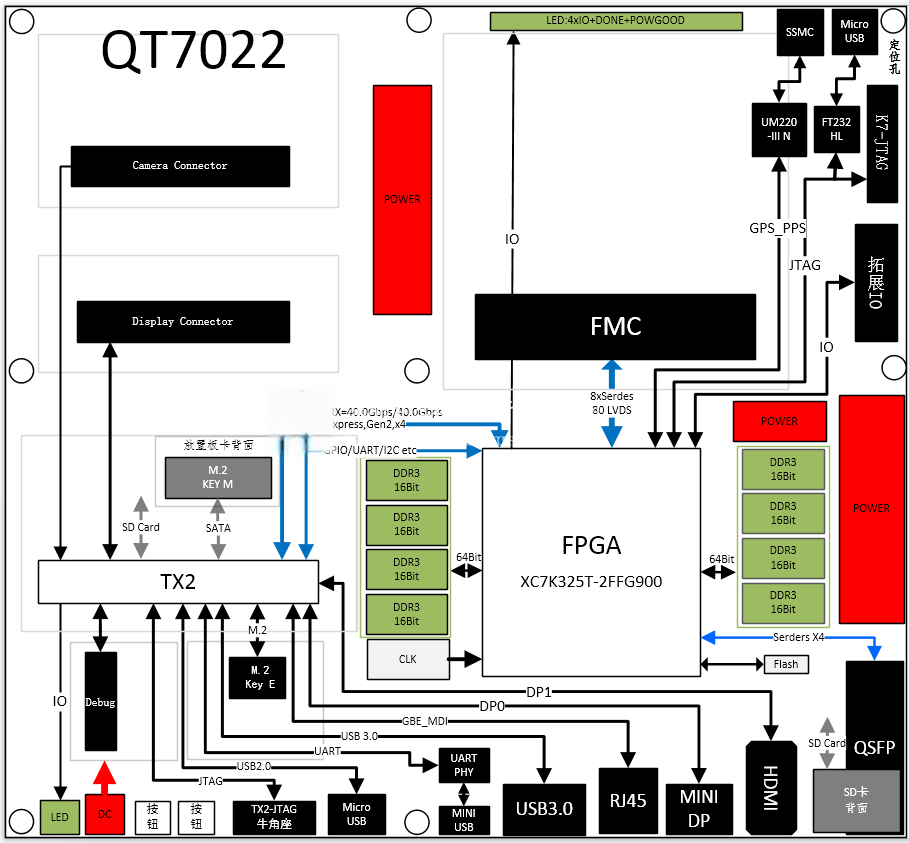

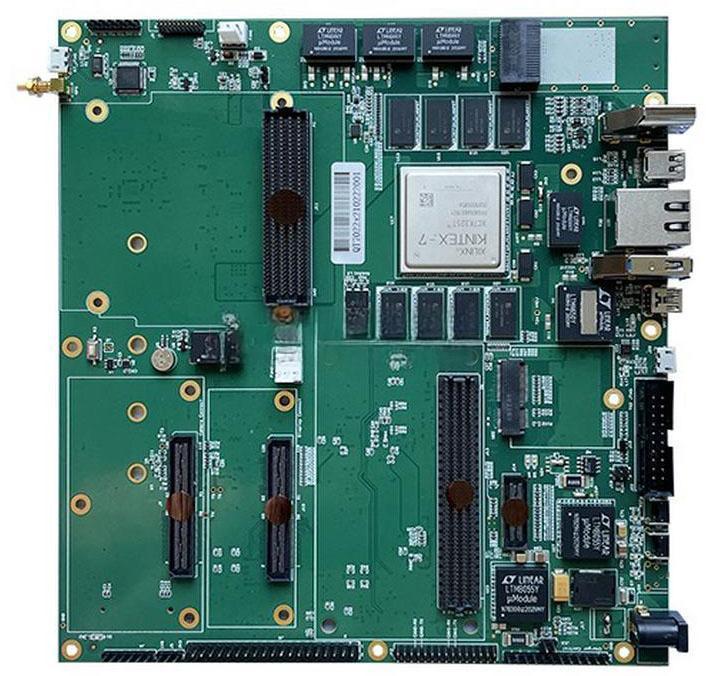

The general-purpose carrier board based on the K7+TX2 module features an HPC-style FMC connector on board. It uses the cost-effective Kintex-7 series FPGA chip XC7K325T-FFG900, paired with NVIDIA's high-performance GPU module Jetson TX2. The FPGA is equipped with two sets of 64-bit 2GB DDR3 SDRAM memory arrays and two 256Mb SPI Flash chips. It supports one Mini USB to UART, one Micro USB for JTAG, and one 6-pin header JTAG interface. Additionally, it provides one SSMC GPIO or RF input interface, an expansion connector with 13 GPIOs, a 12V DC fan interface, and a QSFP fiber optic port. The FPGA carrier board connects to the GPU via a high-speed board-to-board connector, creating a highly flexible and scalable development platform.
