Relay Control Board

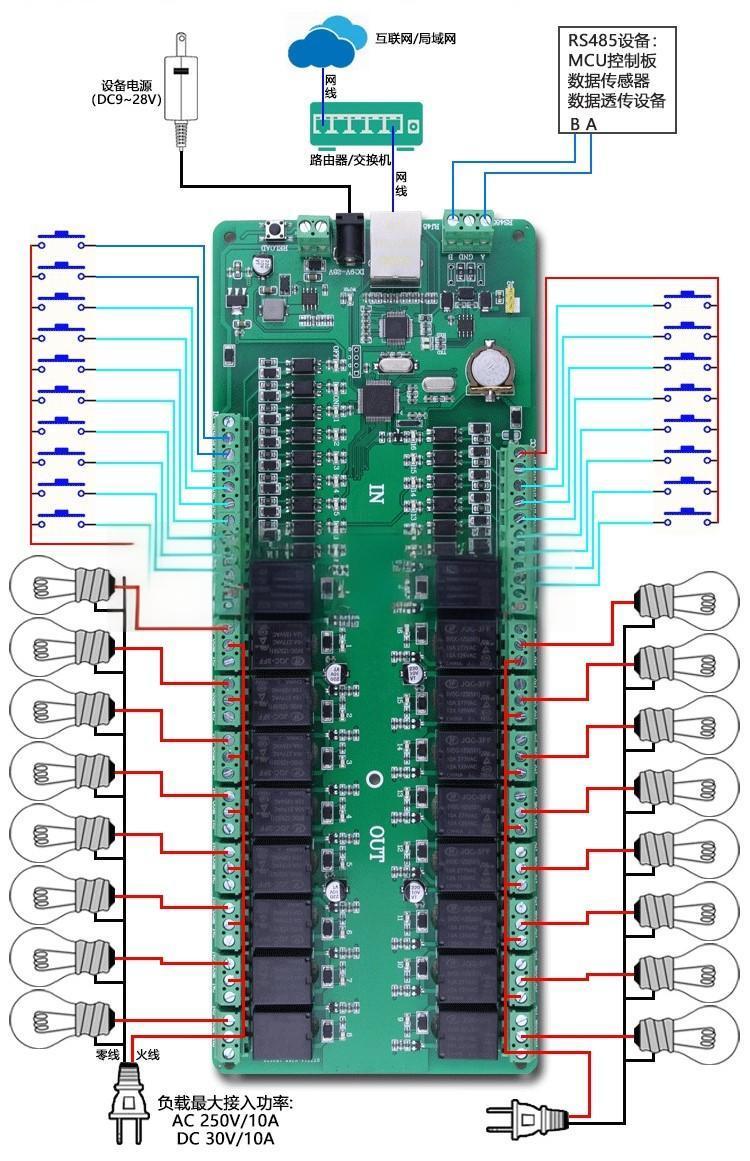

The device adopts an industrial-grade design, equipped with a 32-bit ARM processor and a 10/100M Ethernet network scheme. It features fast speed, strong computing power, high stability, and strong anti-interference ability, meeting the requirements for industrial environment use. The device has 16 relay outputs, 18 isolated digital inputs, and 1 RS485 interface. The relays support various control methods such as real-time control, delayed control, input-output linkage control, one-click all-on/all-off control, daily cycle timing control, and custom date control. The digital input states support passive upload, scheduled upload, and trigger upload. The RS485 interface can be used for controlling devices or transmitting data to meet a variety of different usage scenarios.

SHC Electronics Limited was founded in 2017 as a high-tech enterprise, specializing in the manufacturing of intelligent controller PCBA, as well as the research, design, and production of intelligent products. We focuses on providing various intelligent controller products and corresponding solutions for industrial controllers, medical products, new energy vehicle electronics, and new smart home applications.

Our factory has obtained certifications such as ISO 9001:2015, ISO 1345:2016, IATF 16949 for automotive, and ISO 13485 for medical quality system certifications. We have the capability to assist customers in completing RoHS and Reach environmental certifications, as well as supporting them in product reliability testing and failure analysis.

Distinguishing itself from factories focused solely on manufacturing, SHC Electronics Limited also provides services such as PCBA design and development, BOM material procurement, DFX evaluation, and other technical support. From the research and development stage to prototyping, small to medium-scale production, and mass production, we provide corresponding manufacturing solutions.

During the product design stage: we can assist with material selection and assist with DFX design, assist with designing the original schematic diagram and Layout design, and the design of test plans. During the sample verification stage, we can provide 10-day fast prototyping, including PCB manufacture, material procurement, and SMT assembly. During the mass production stage, we can assist with mass procurement cost reduction, assist with capacity ramp-up, throughput yield improvement, process failure analysis, verification of key processes, and verification of process parameters.
