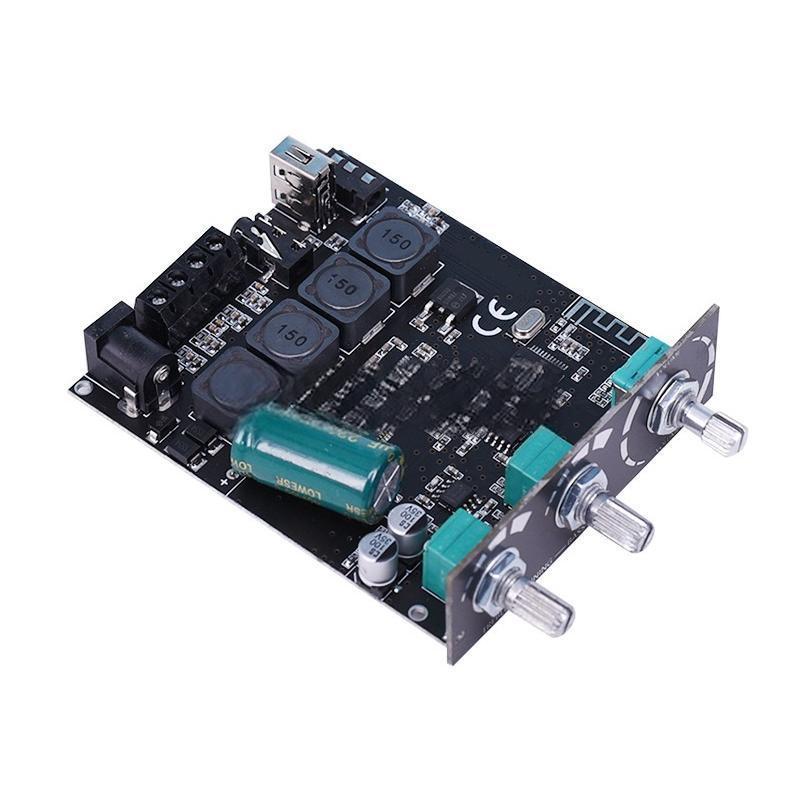

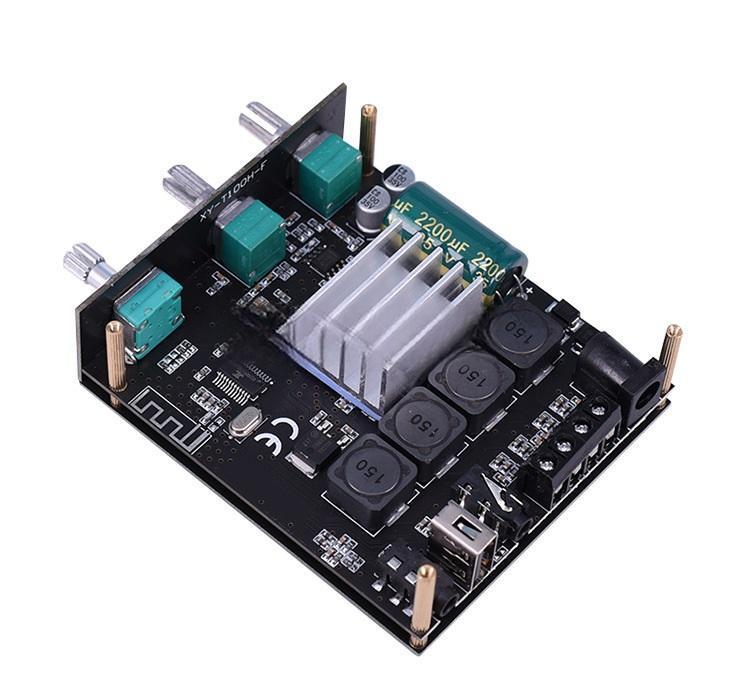

Bluetooth amplifier board

When powered on without any external audio devices connected, this product defaults to Bluetooth mode. If external devices like an AUX cable or USB flash drive are connected, it will default to AUX or USB mode. The device prioritizes the most recently connected device during playback, so if you plug in an AUX while playing over Bluetooth, it will switch to AUX immediately. The same goes for USB – if you insert a USB flash drive, it switches to USB playback right away. You can also switch audio modes using an app, which is very convenient.

1) For AUX playback, it’s best to use an AUX cable with a screen layer to reduce noise. If you're using it with a desktop computer, it's better to use the AUX output on the back of the computer's main unit, as the front AUX port might have noise.

2) For USB playback, try to use MP3 format. If using WAV format, the sample rate must be within 44100Hz, as higher rates might not play correctly.

3) To use the USB sound card function, just connect it to your computer with a USB data cable. No need to install any drivers – most computer systems will switch to the USB sound card by default. If not, you can manually select it.

Power Supply

This product supports a power range of 5-26VDC and is compatible with standard 5.5-2.1/2.5 power adapter plugs. It is recommended to use a 12V or 24V standard power adapter with an output current of over 10A. The power size should match the speaker’s power: if using a 2Ω/100W speaker, the power should not exceed 20V; for a 4Ω/50W speaker, the power should not exceed 21V; and for an 8Ω/50W speaker, the power should not exceed 24V.
