48V-2KW energy storage inverter PCB design (mobile energy storage)
Product Name: 48V-2KW Energy Storage Inverter PCB Driver Module Kit (Primary + Secondary + Bi-Directional Soft-Switching Power Board)
Industry: BMS (Battery Management System)
Main Chips: BAT32G139, LM393, TP2412-SR
Board Type: Energy Storage Driver Module
Application Area: Data Acquisition
Pin Count:
Layer Number: 2/2/2
Board Thickness: 2mm
Dimension: 60.95*42.85mm, 65.33*40.5mm, 296.8*178.5mm
Line Width/Spacing: 4/9mil, 4/6mil, 10/10mil
Component Quantity: 110pcs, 107pcs, 364pcs
Component Types: 38/38/130
Design Challenges: None
| Product Name | 48V-2KW Energy Storage Inverter PCB Driver Module Kit (Primary + Secondary + Bi-Directional Soft-Switching Power Board) |
| Industry | BMS (Battery Management System) |
| Main Chips | BAT32G139, LM393, TP2412-SR |
| Board Type | Energy Storage Driver Module |
| Application Area | Data Acquisition |
| Pin Count | |
| Layer Number | 2/2/2 |
| Board Thickness | 2mm |
| Dimension | 60.95*42.85mm, 65.33*40.5mm, 296.8*178.5mm |
| Line Width/Spacing | 4/9mil, 4/6mil, 10/10mil |
| Component Quantity | 110pcs, 107pcs, 364pcs |
| Component Types | 38/38/130 |
| Design Challenges | None |

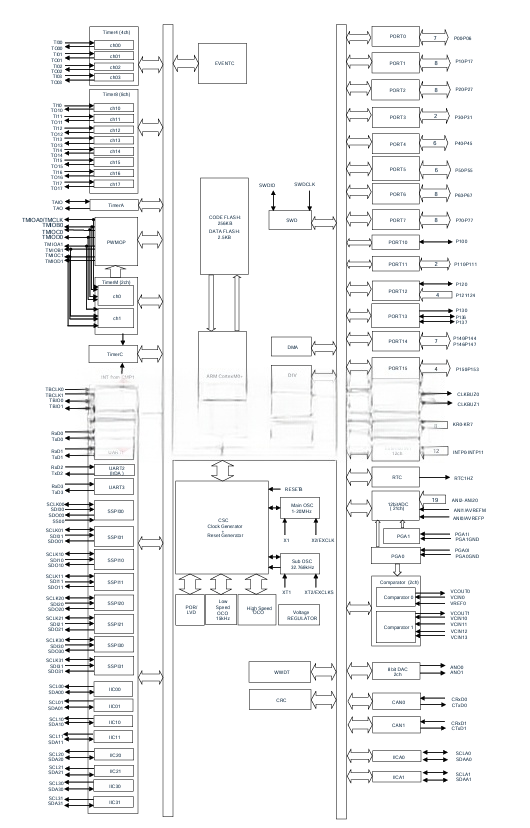

Chip Functional Structure Diagram:

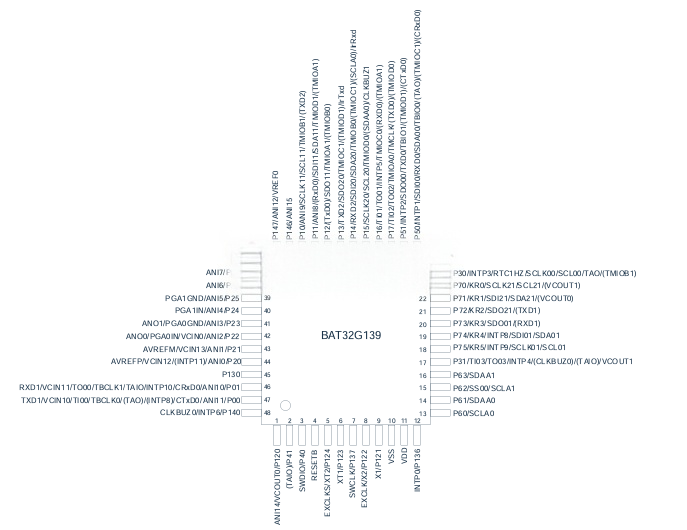

Pin Definitions
Schematic Design

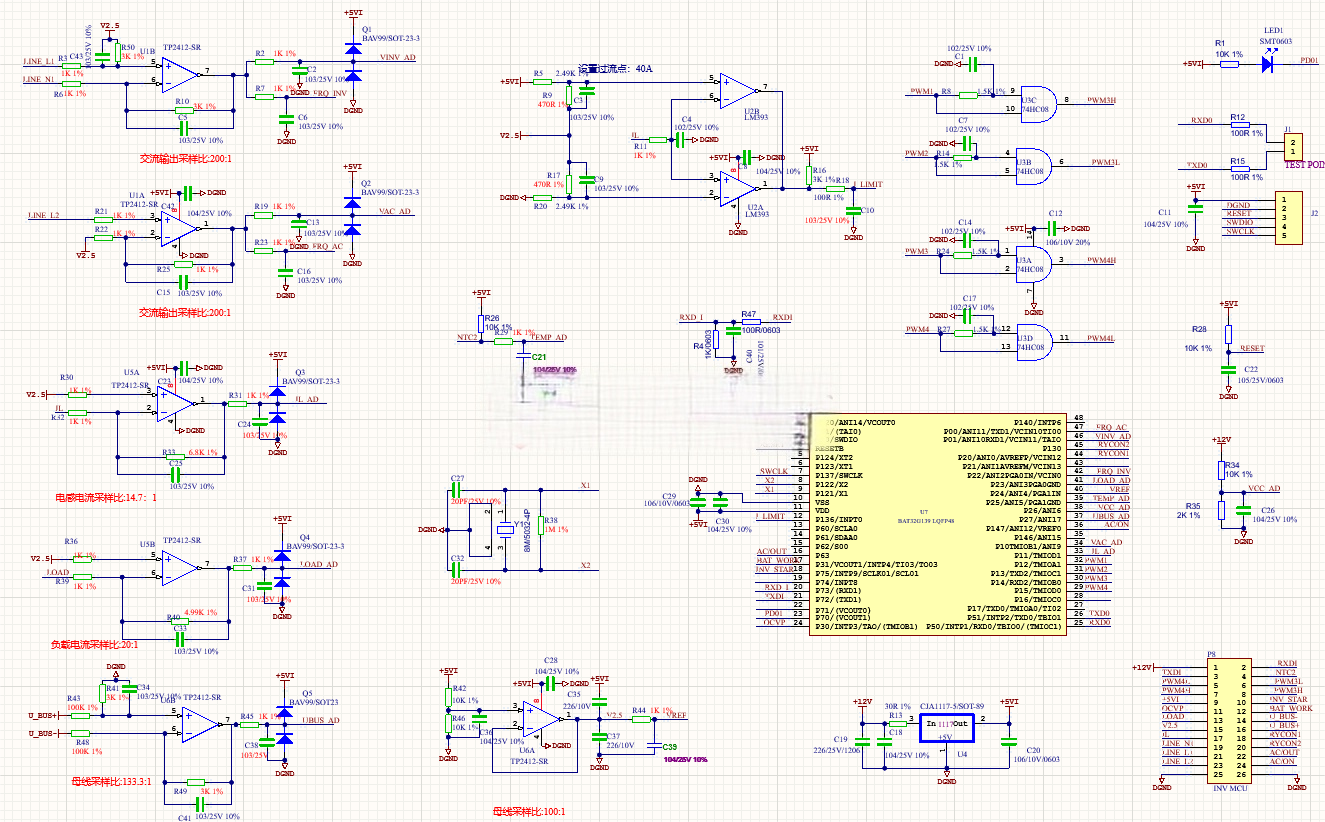

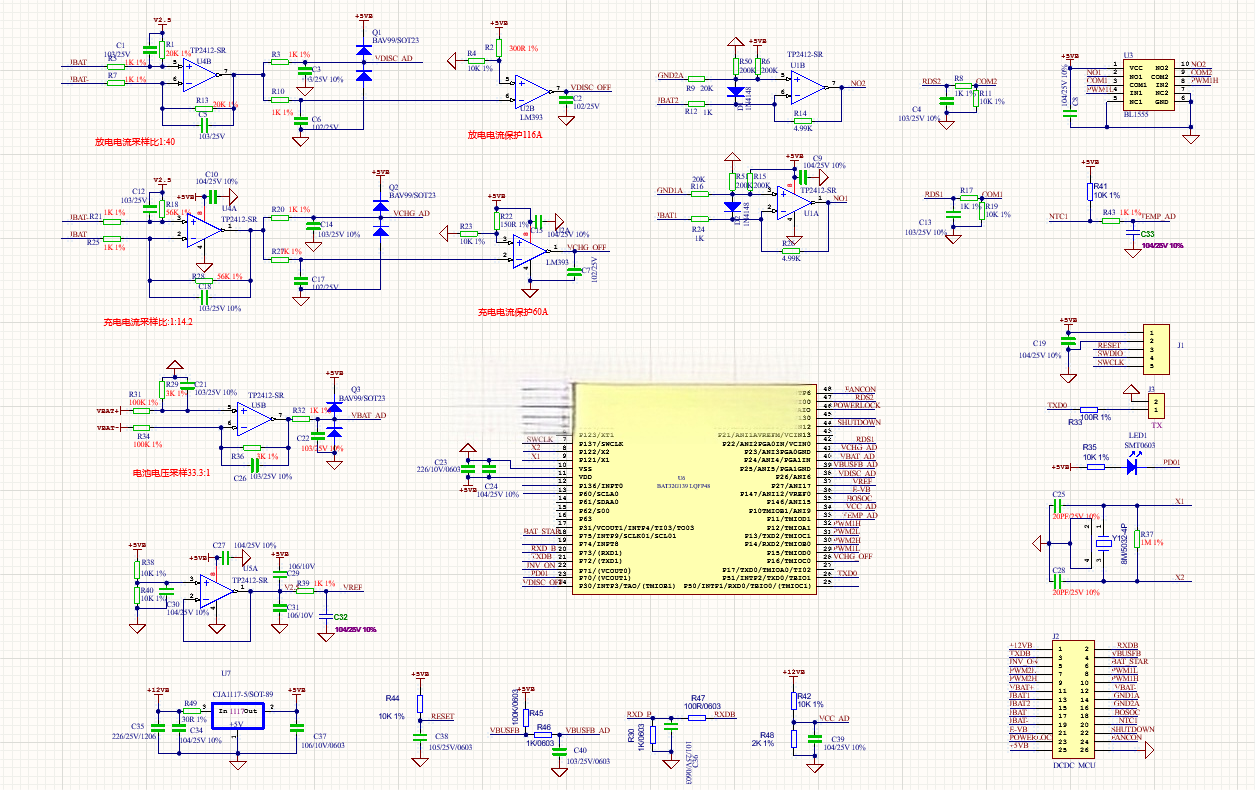

1. 48V-2KW Energy Storage Inverter Front-end Drive Module PCB Schematic Diagram
2. 48V-2KW Energy Storage Inverter Back-end Drive Module PCB Schematic Diagram:

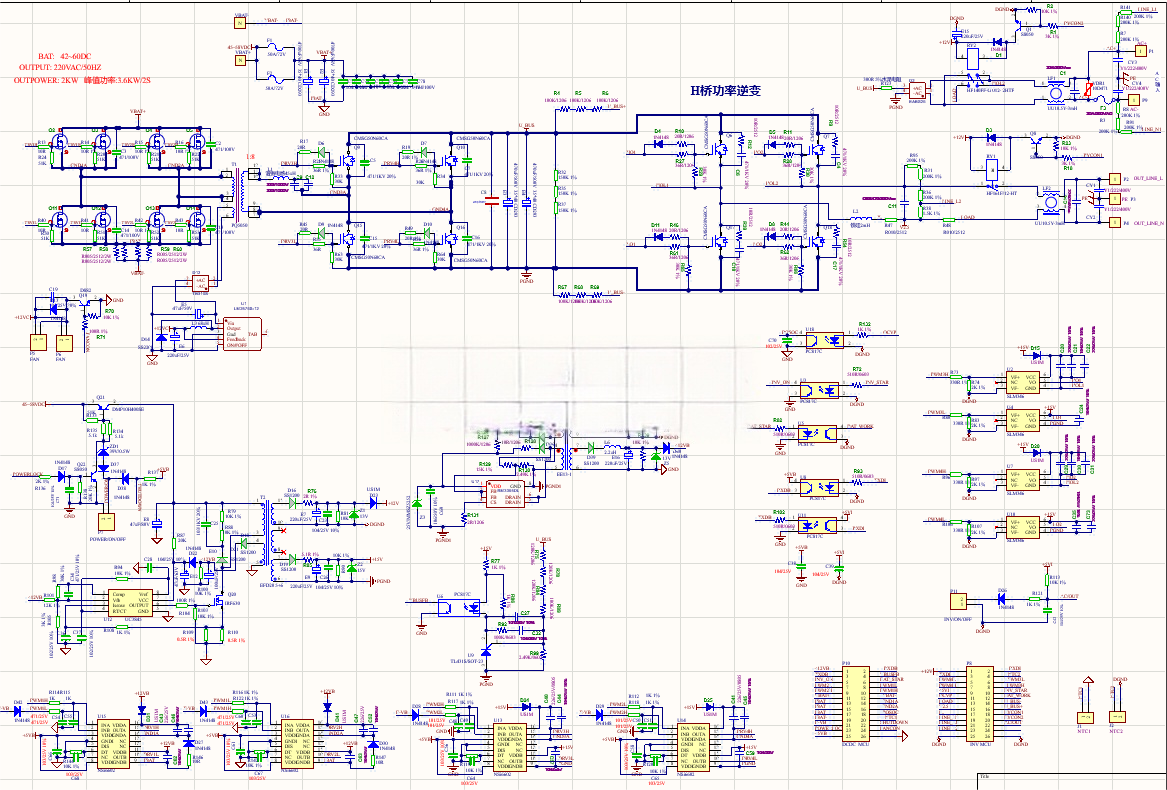

3. 48V-2KW Bidirectional Soft Switch Power Board PCB Schematic Diagram:
PCB Layout Diagram:

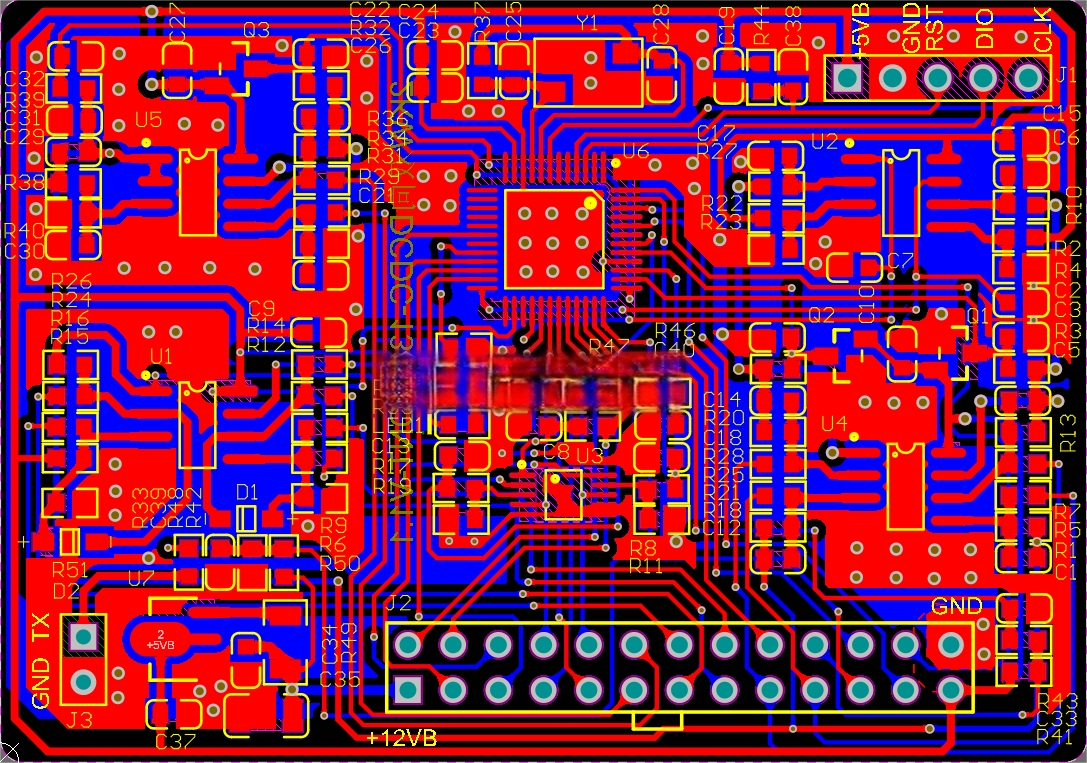

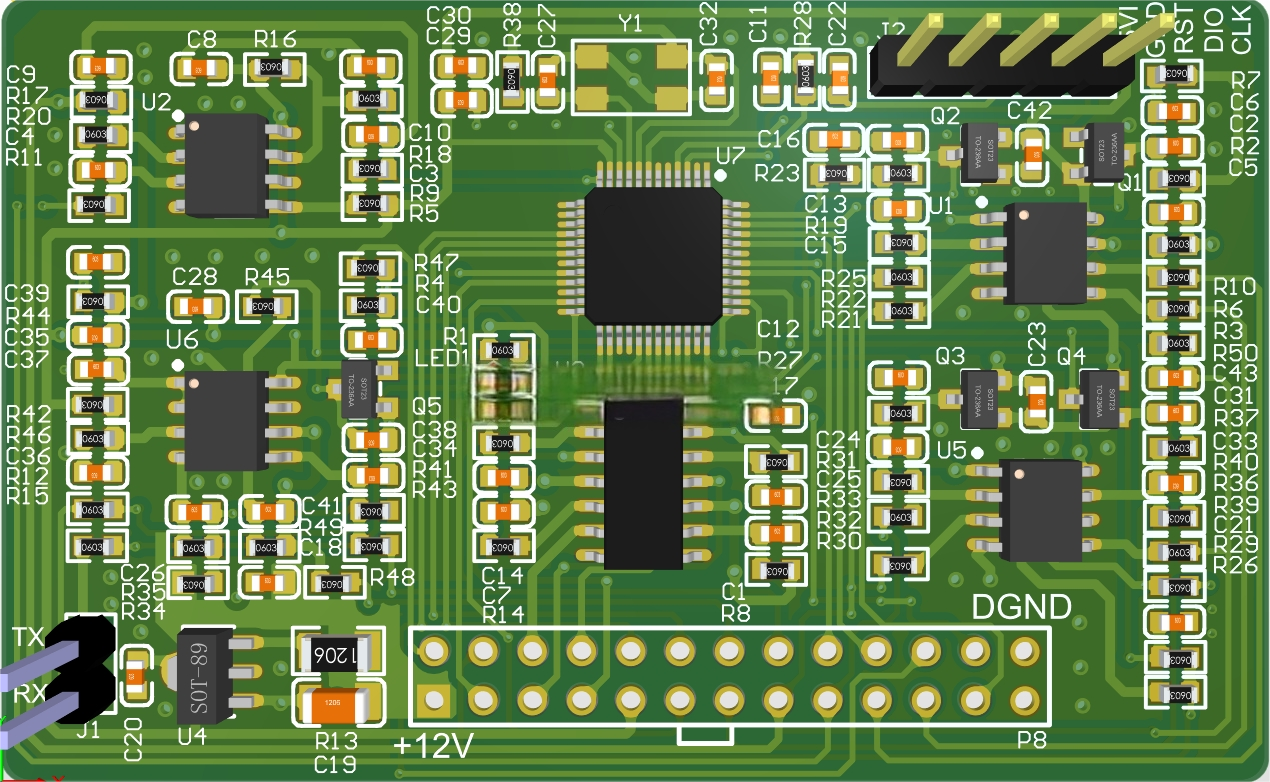

1. 48V-2KW Energy Storage Inverter Front-end Drive Module Layout Diagram

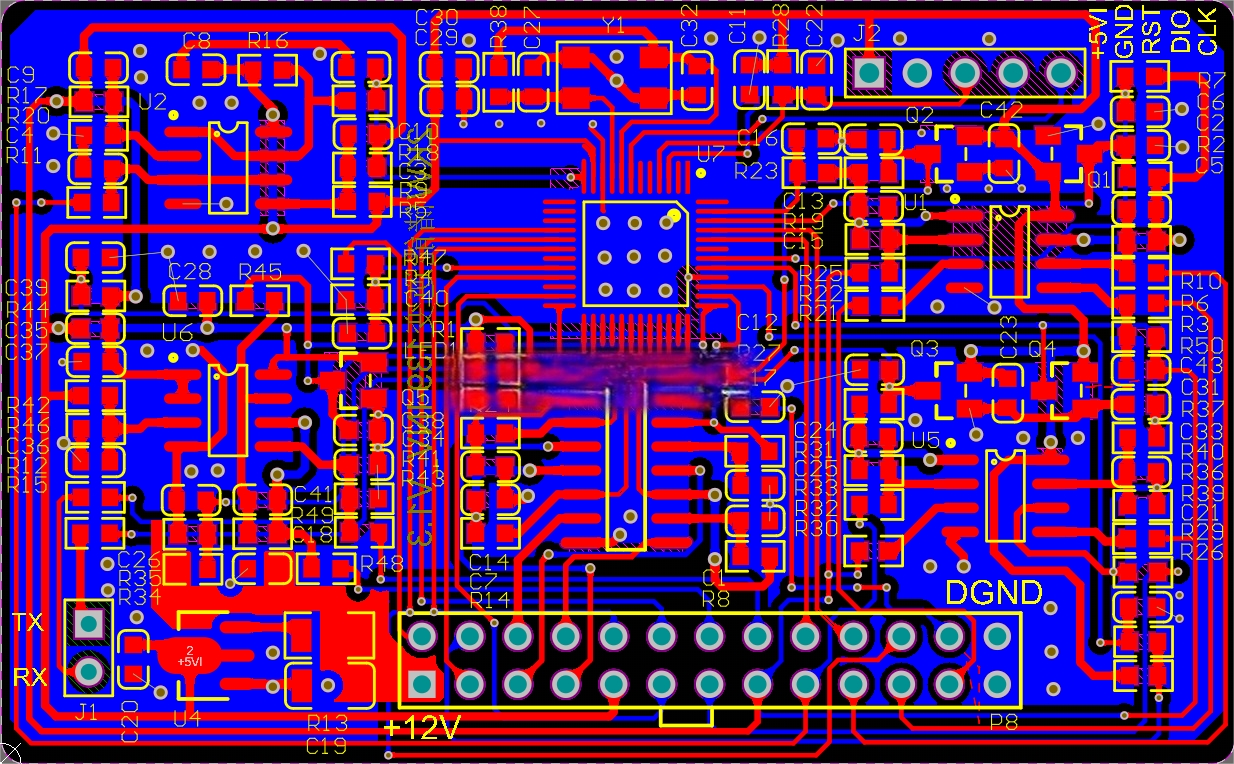

2. 48V-2KW Energy Storage Inverter Back-end Drive Module Layout Diagram:

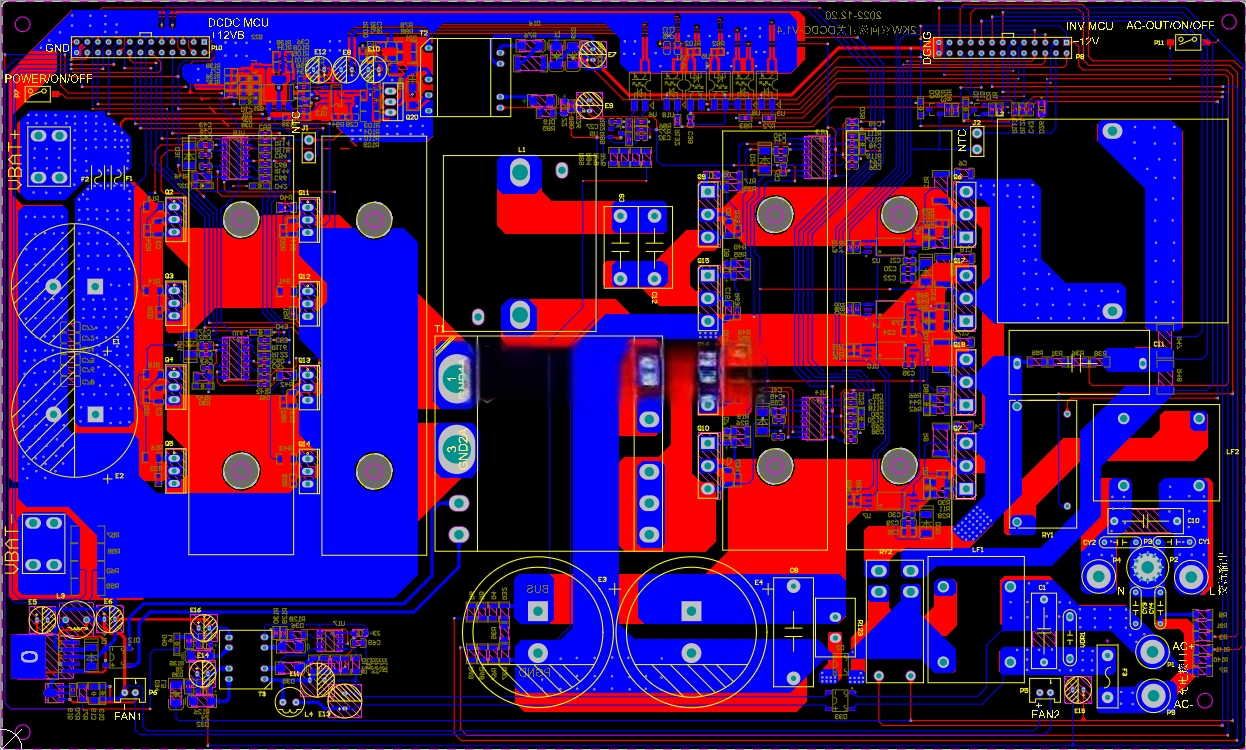

3. 48V-2KW Bidirectional Soft Switch Power Board Layout Diagram:
PCB Simulation Diagram:

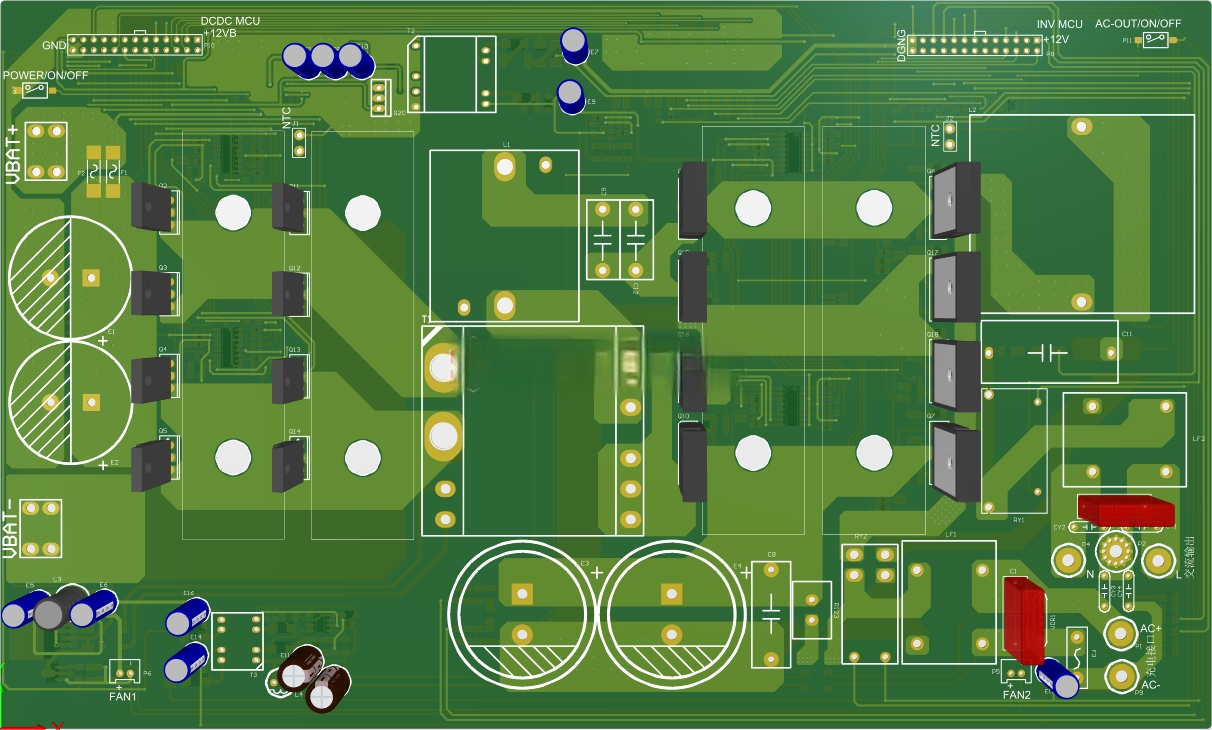

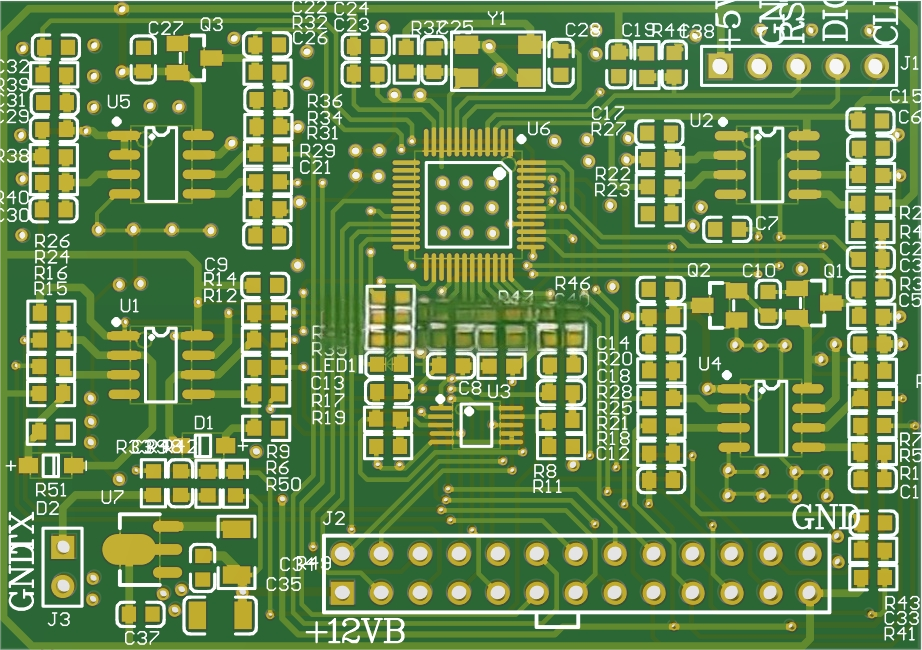

1. 48V-2KW Energy Storage Inverter Front-end Drive Module Simulation Diagram
2. 48V-2KW Energy Storage Inverter Back-end Drive Module Simulation Diagram:
3. 48V-2KW Bidirectional Soft Switch Power Board Simulation Diagram:

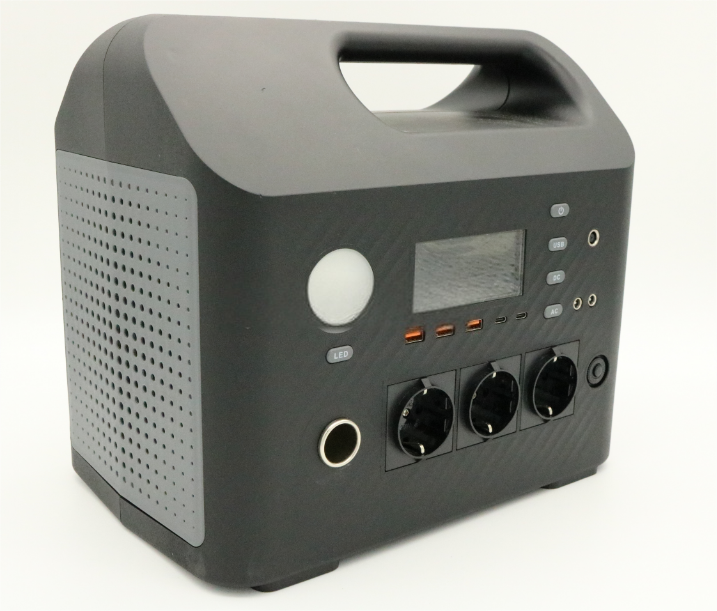

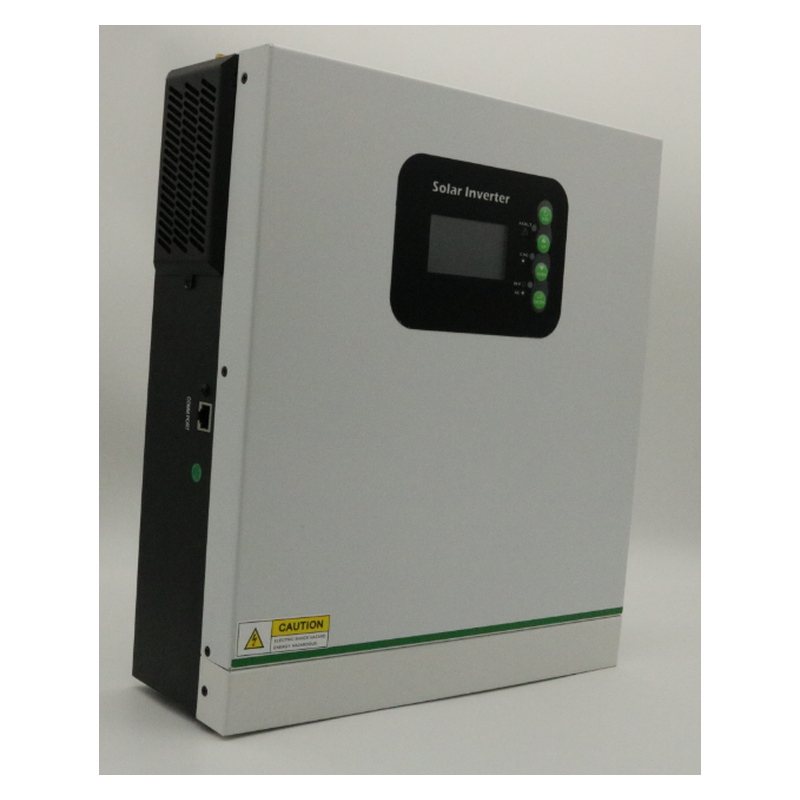

Usage Scenario:
