Industrial Embedded Host Motherboard Development (Rockchip 3588)
Product Name: Industrial Control Computer
Industry: Industrial Communication Control
Main Chip: Rockchip RK3588 (CPU)
SCE11N8G322AF *2 (LPDDR4)Board Type: Industrial Communication Control Computer Motherboard
Application Field: Automation Equipment Control, Robot Motherboard, etc.
Pin Count: 8609
Layers: 8
Board Thickness: 2.0mm
| Product Name | Industrial Control Computer |
|---|---|
| Industry | Industrial Communication Control |
| Main Chip | Rockchip RK3588 (CPU) SCE11N8G322AF *2 (LPDDR4) |
| Board Type | Industrial Communication Control Computer Motherboard |
| Application Field | Automation Equipment Control, Robot Motherboard, etc. |
| Pin Count | 8609 |
| Layers | 8 |
| Board Thickness | 2.0mm |
| Design Challenges | 1. HDI structure ensures signal transmission, need to consider signal quality and interference; 2. Need to consider impedance design; |

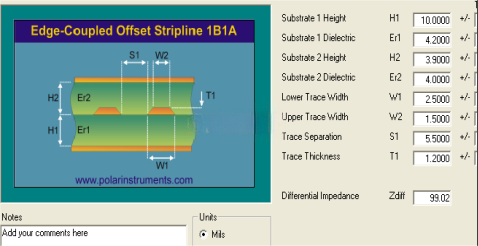

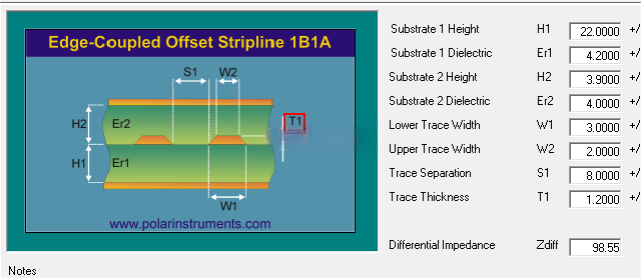

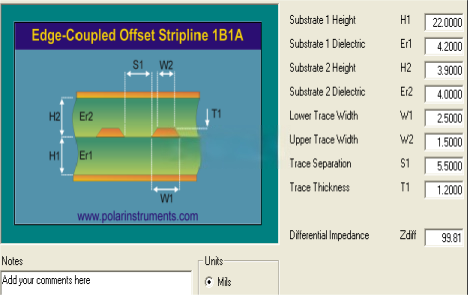

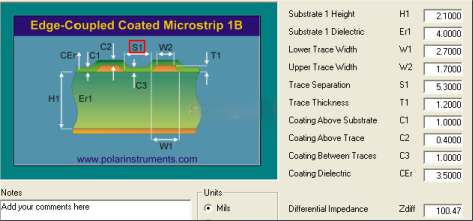

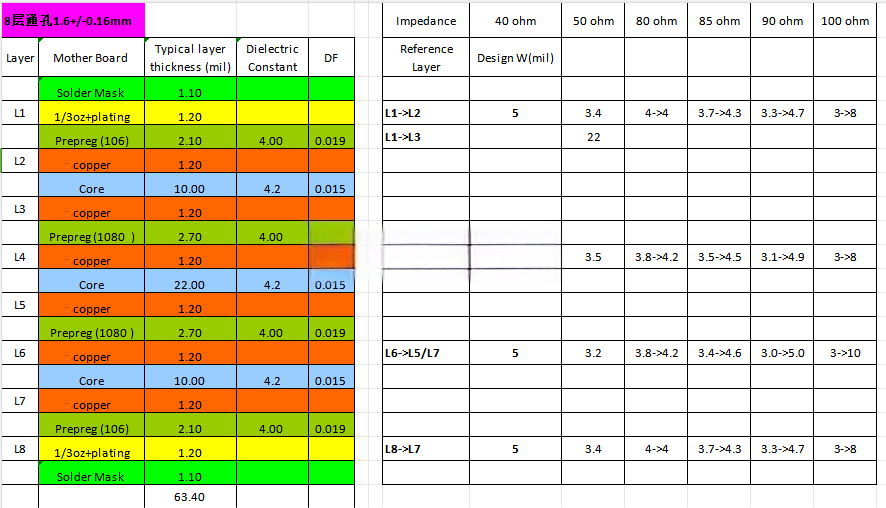

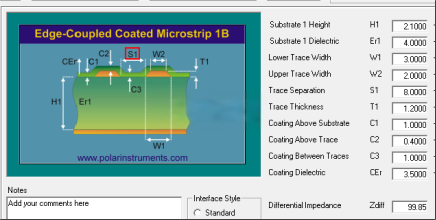

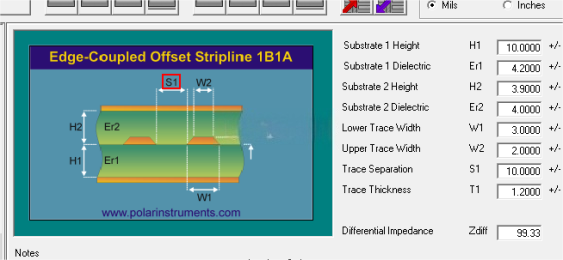

Impedance Calculation
L1 /L8 100 Ohm
L4 100 Ohm
L6 100 Ohm

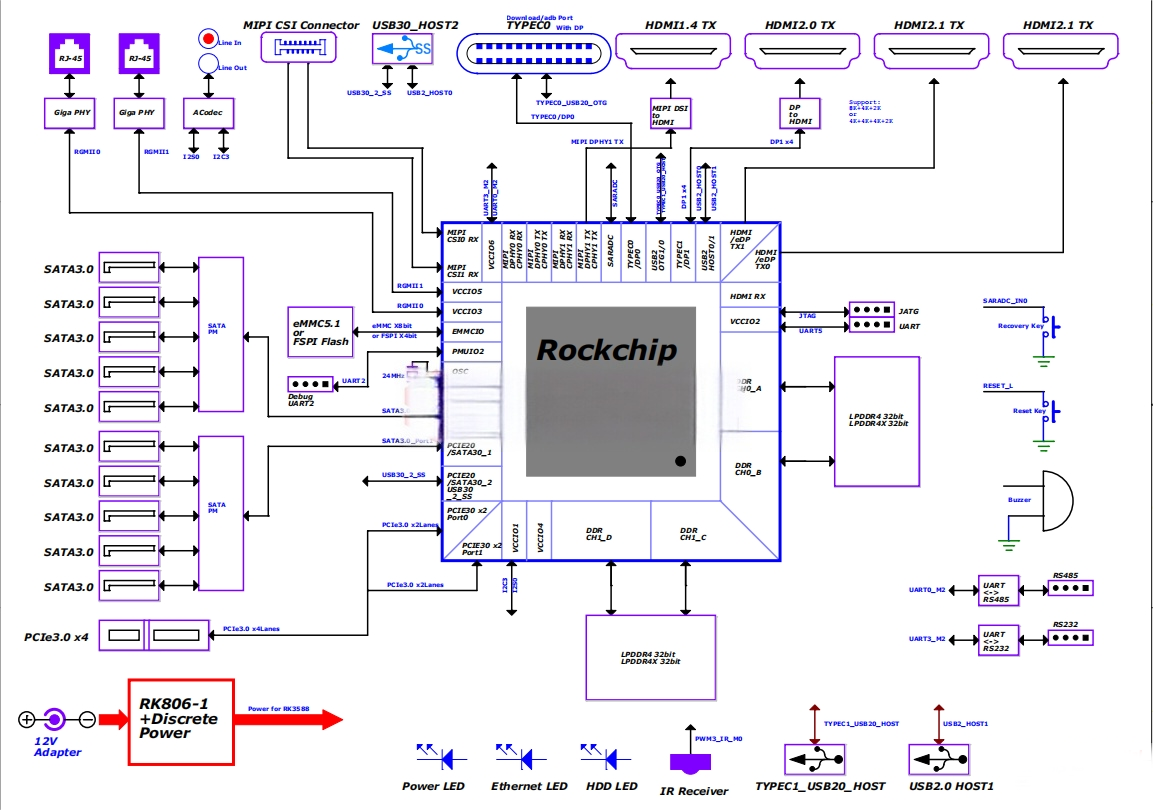

Product Functional Structure Diagram:
Partial Schematics:

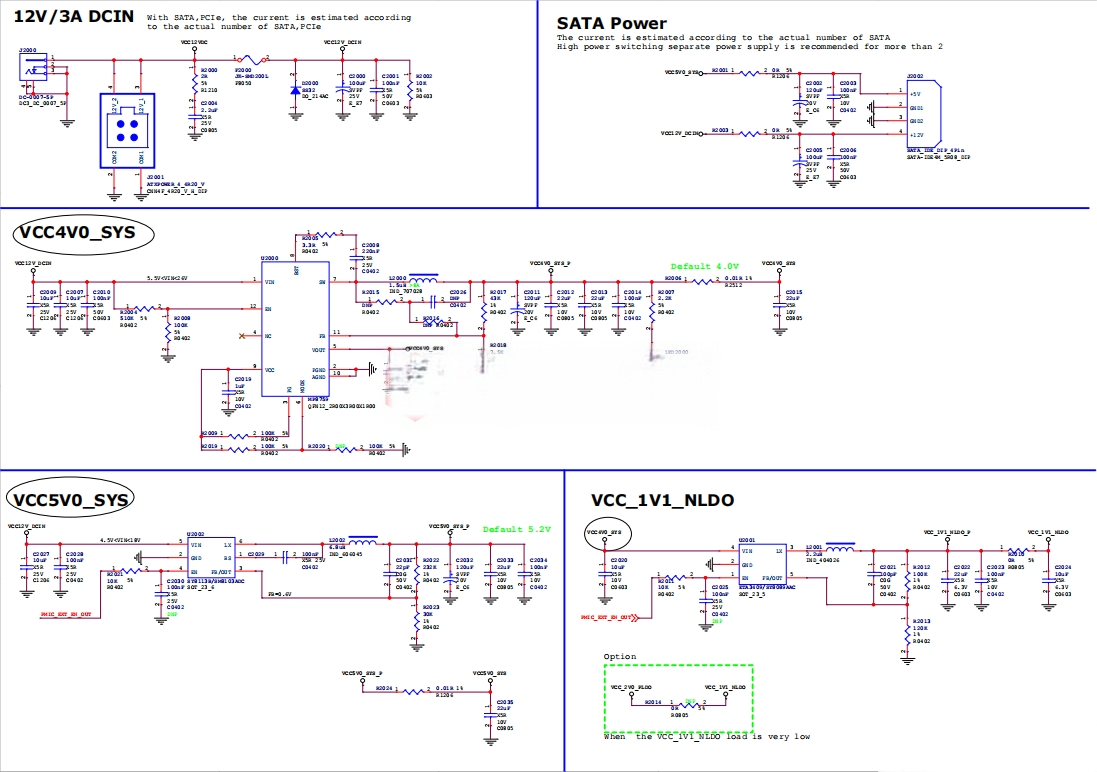

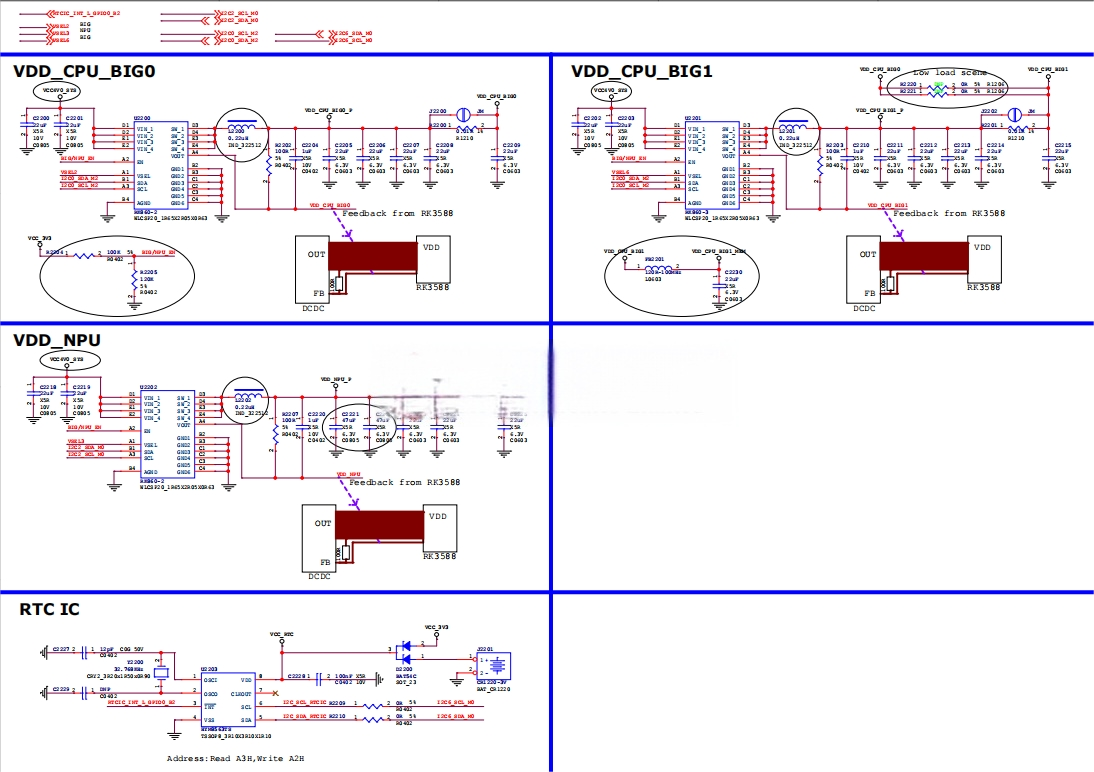

1: Power Supply Section

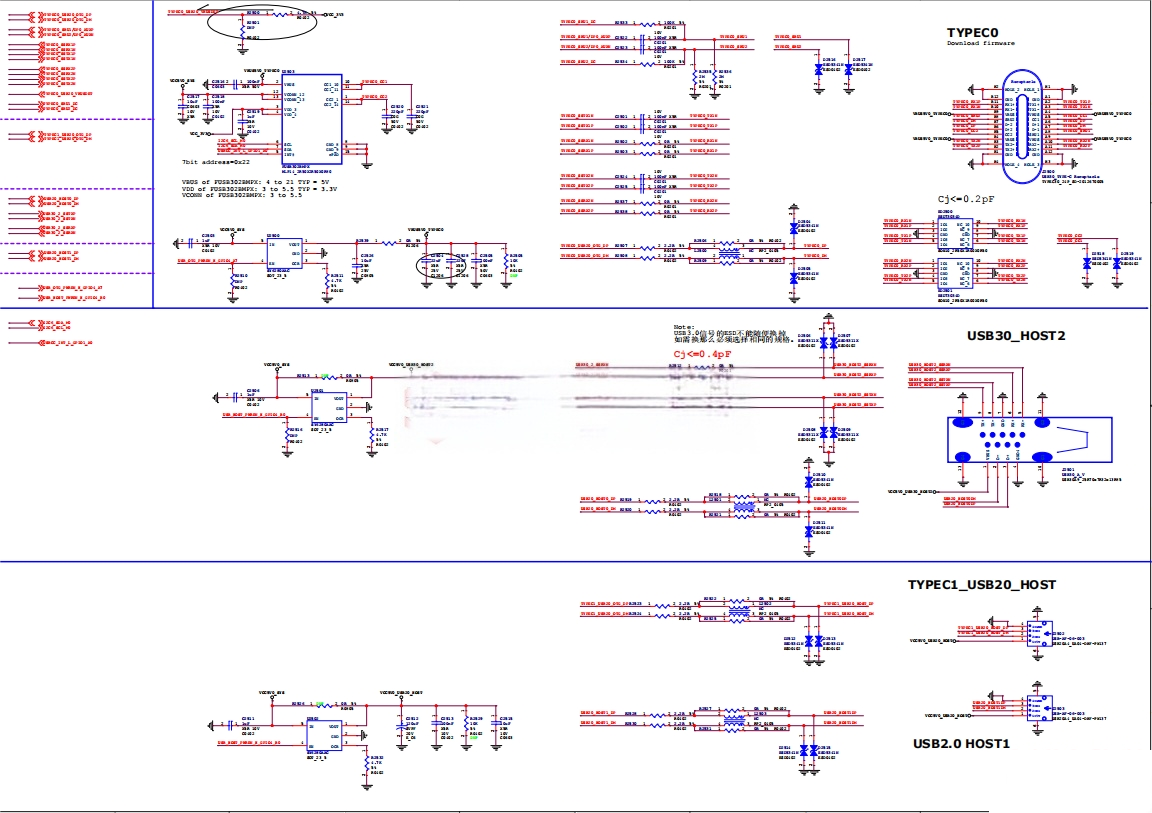

2: Type-C USB3.0 USB2.0 Section

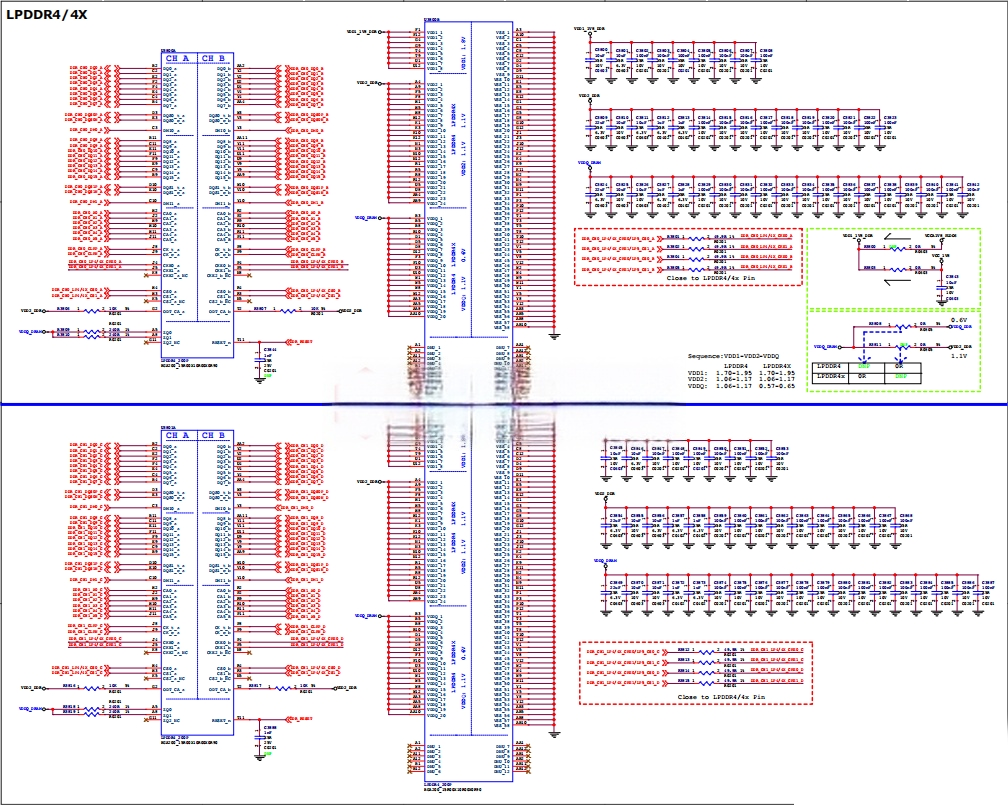

3: LPDDR4 Section

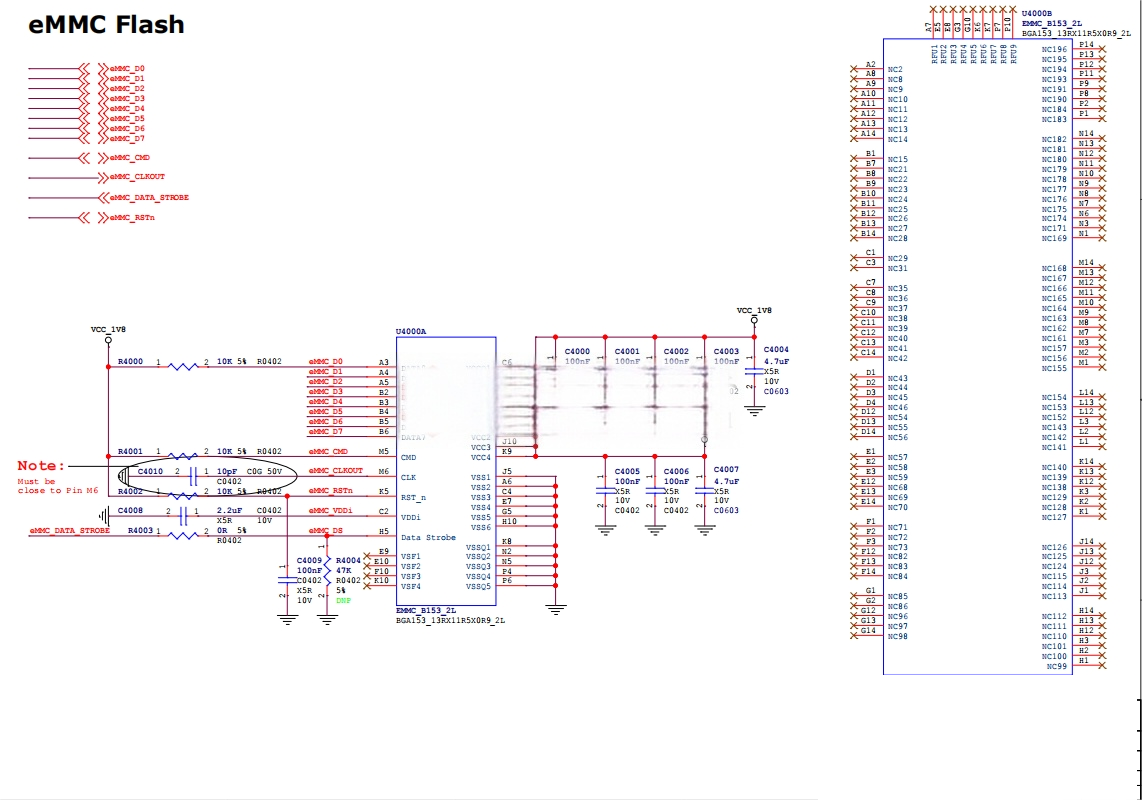

4: eMMC Flash Section

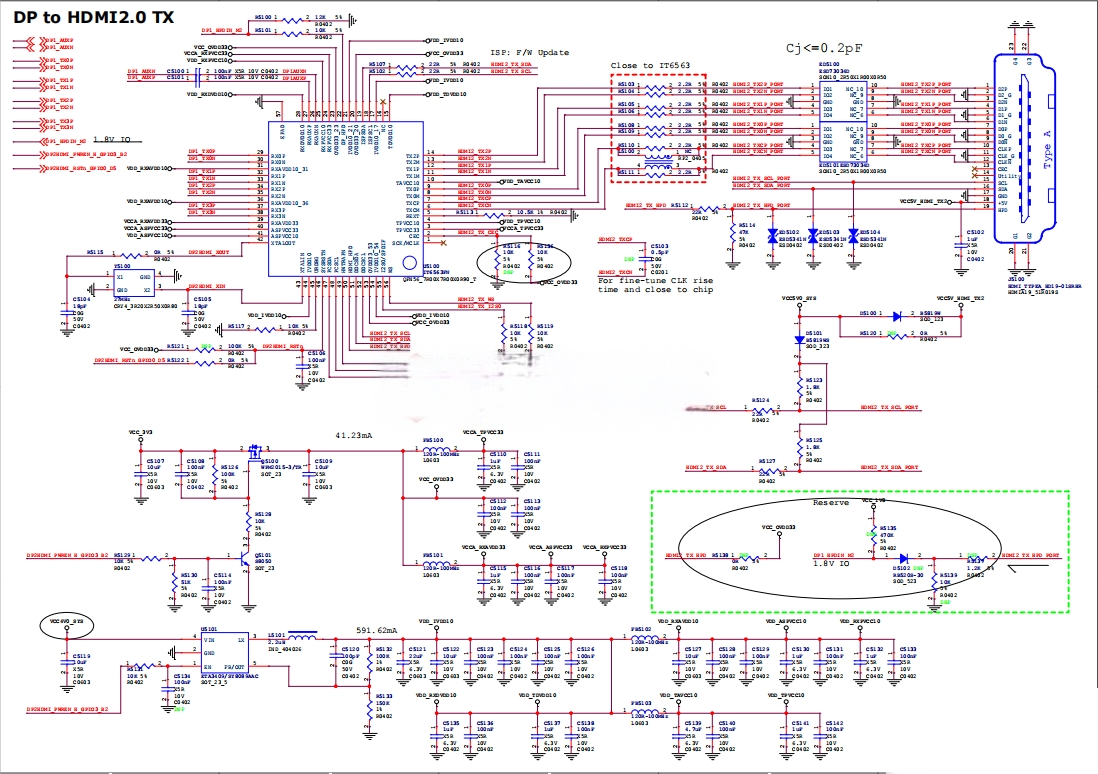

5: DP to HDMI Section

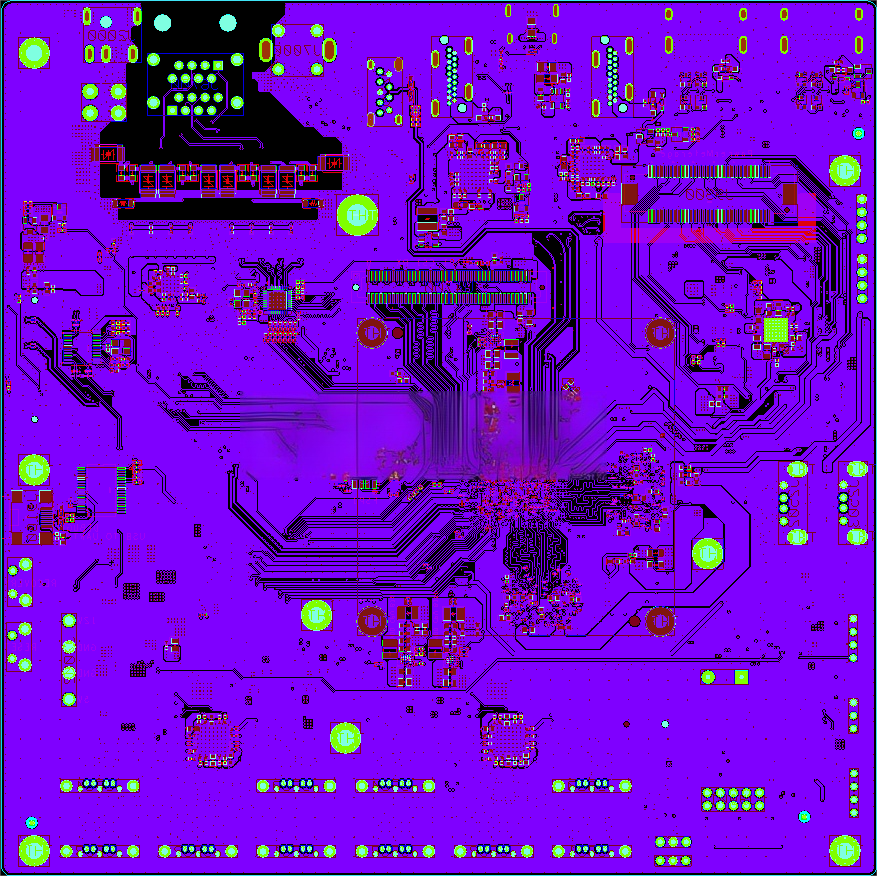

Layout Layer

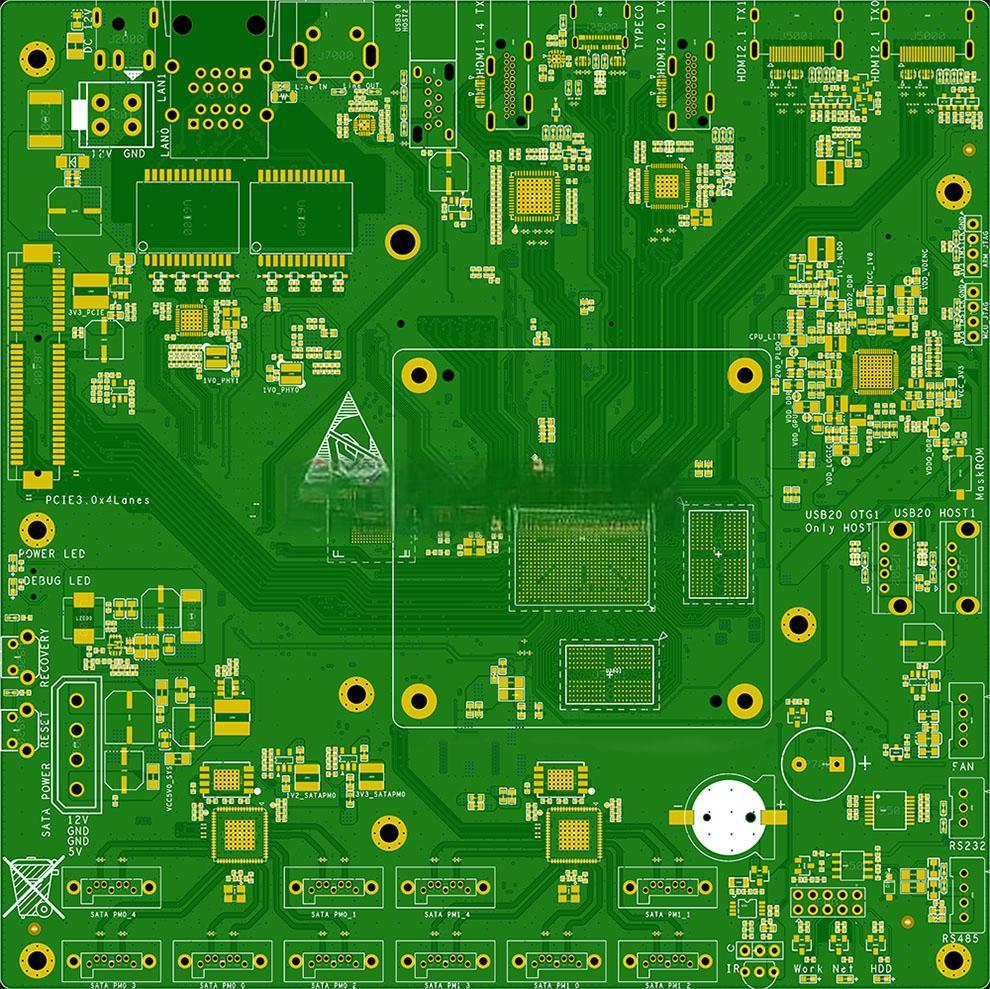

PCB Product Image 1
PCB Product Image 2
Application Scenario:
