STM32H743ZIT6 embedded motherboard development (laser scalpel motherboard)
Product Name: Medical Laser Surgery Knife Driver Motherboard
Industry: Medical Motherboard
Main Chips: STM32H743ZIT6, AD9951YSVZ, PAM8302AASCR, DAC7565IAPWR, ADA4932_1YCPZ_R2, MAX14934BAWE+, ADUM2250ARWZ, IXTH24N50L
Board Type: Laser Surgery Knife Driver Motherboard
Pin Count: 2522
Layer Number: 6
Design Challenges: 1. PCBA signal stability.
2. Heat dissipation.
| Product Name | Medical Laser Surgery Knife Driver Motherboard |
| Industry | Medical Motherboard |
| Main Chips | STM32H743ZIT6, AD9951YSVZ, PAM8302AASCR, DAC7565IAPWR, ADA4932_1YCPZ_R2, MAX14934BAWE+, ADUM2250ARWZ, IXTH24N50L |
| Board Type | Laser Surgery Knife Driver Motherboard |
| Pin Count | 2522 |
| Layer Number | 6 |
| Design Challenges | 1. PCBA signal stability. 2. Heat dissipation. |
Strategy:
1. The power section uses a wide range of GND grounding, isolating the signal layer from the power layer to avoid signal interference;
2. The IXTH24N50L chip group is designed independently, with added heat sinks to form isolated power.

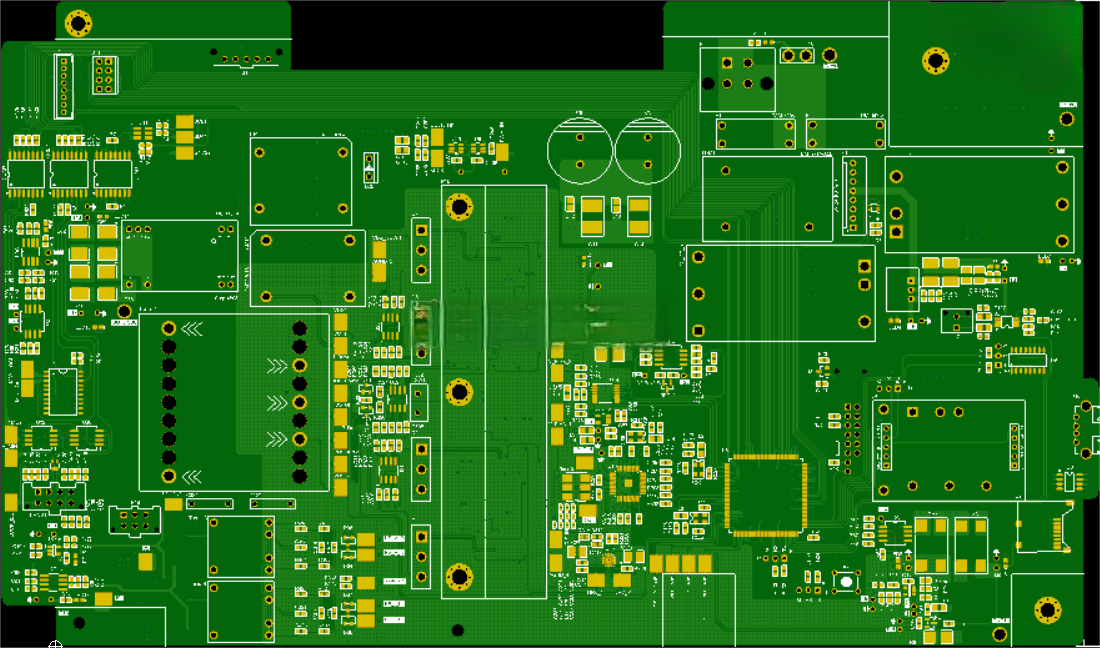

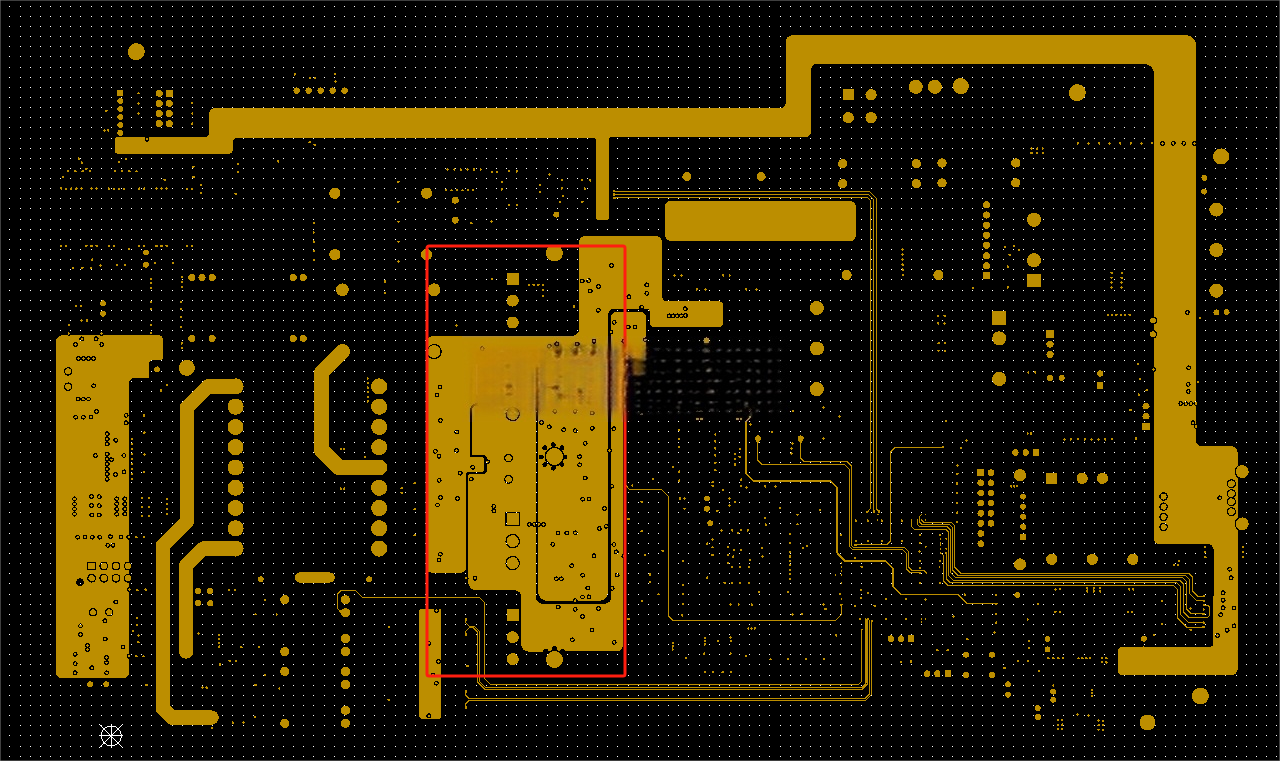

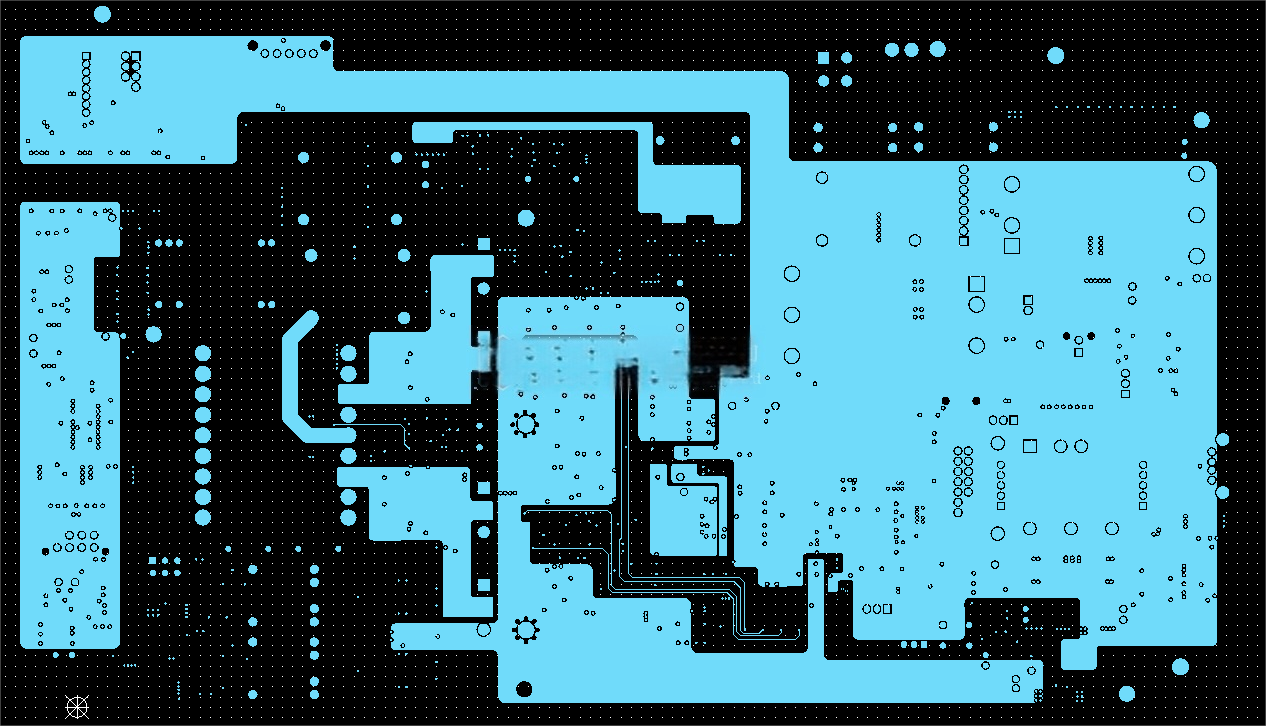

Layout Schematic:
PCB Real Image:

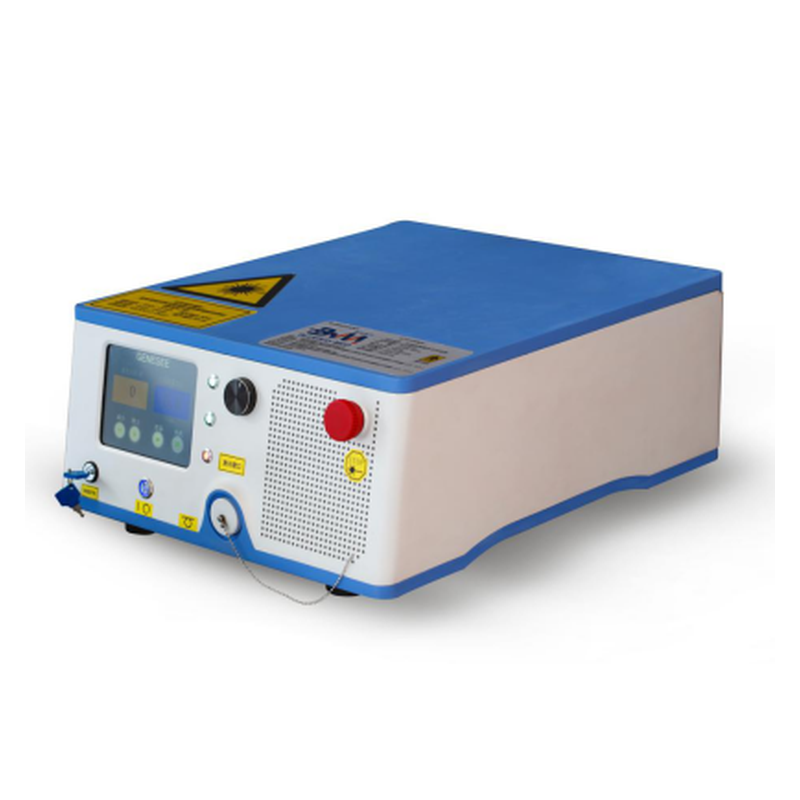

Actual Product Application:
Specific Parameters:
Output Frequency: 4.0MHz single pole, 1.7MHz double pole
Linear Frequency: 50-60 Hz
Linear Voltage: 100-240V
Output Power: Single pole cutting: 90W Single pole cut/coagulate: 65W
Single pole coagulate: 45W Single pole electrosurgery: 35W Bipolar: 90W
```
