STM32L475VGT6 Internet of Things development board PCB development
Product Name: STM32L475VGT6 IoT Development Board PCB
Industry: IoT Development Board
Main Chips: STM32L475VGT6, ISM43362-M3G-L44, SPBTLE-RF BT Module, SPSGRF-868 Sub-GHz Low Power Programmable RF Transceiver Module
Board Type: IoT Development Board
Pin Count: 915
Layer Number: 4
| Product Name | STM32L475VGT6 IoT Development Board PCB |
| Industry | IoT Development Board |
| Main Chips | STM32L475VGT6, ISM43362-M3G-L44, SPBTLE-RF BT Module, SPSGRF-868 Sub-GHz Low Power Programmable RF Transceiver Module |
| Board Type | IoT Development Board |
| Pin Count | 915 |
| Layer Number | 4 |

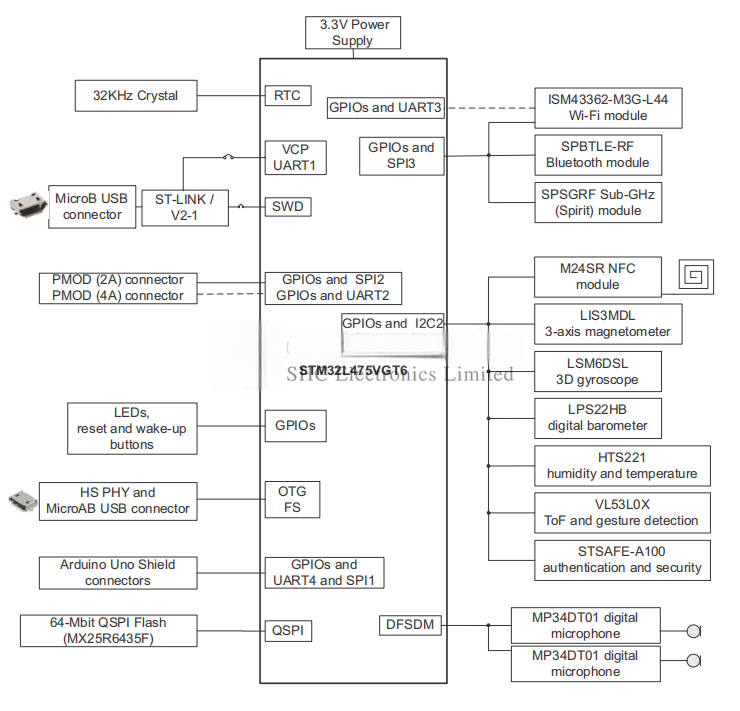

Hardware Diagram

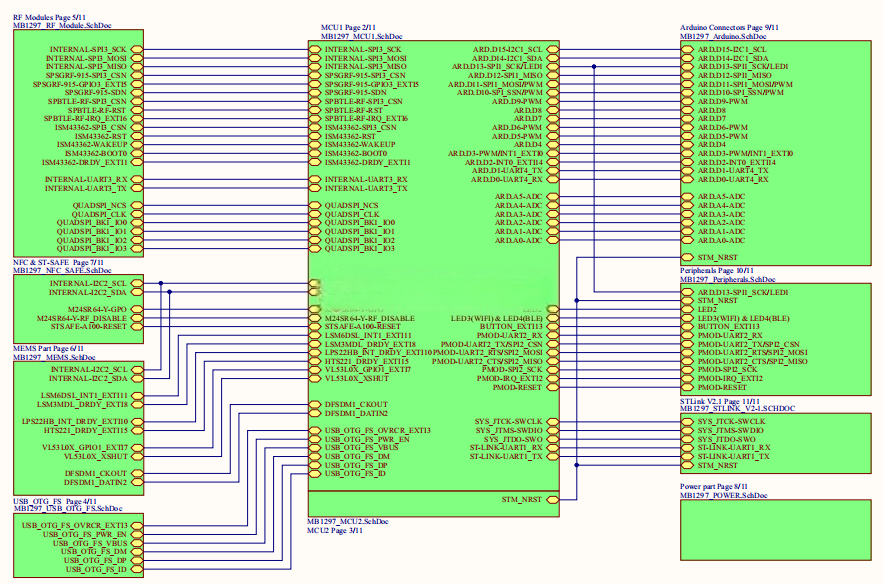

Schematic Design: (Some schematics not shown)

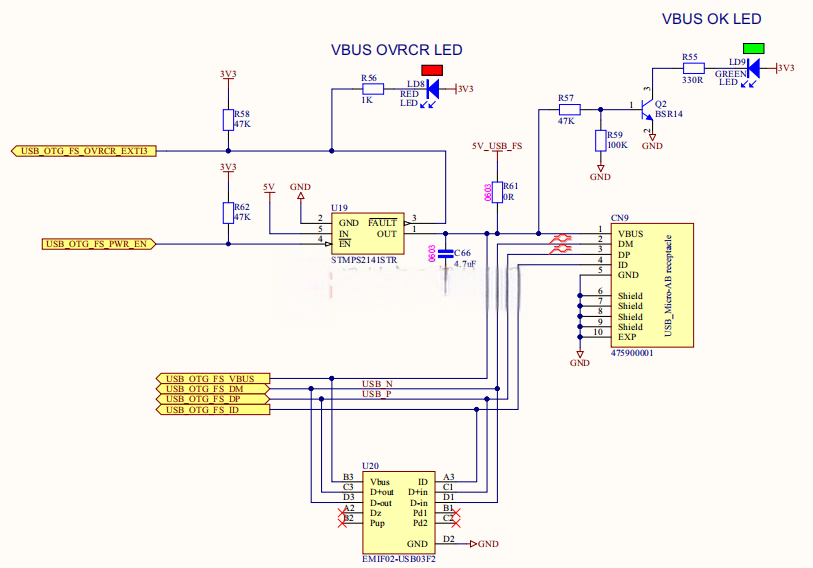

USB OTG Schematic:

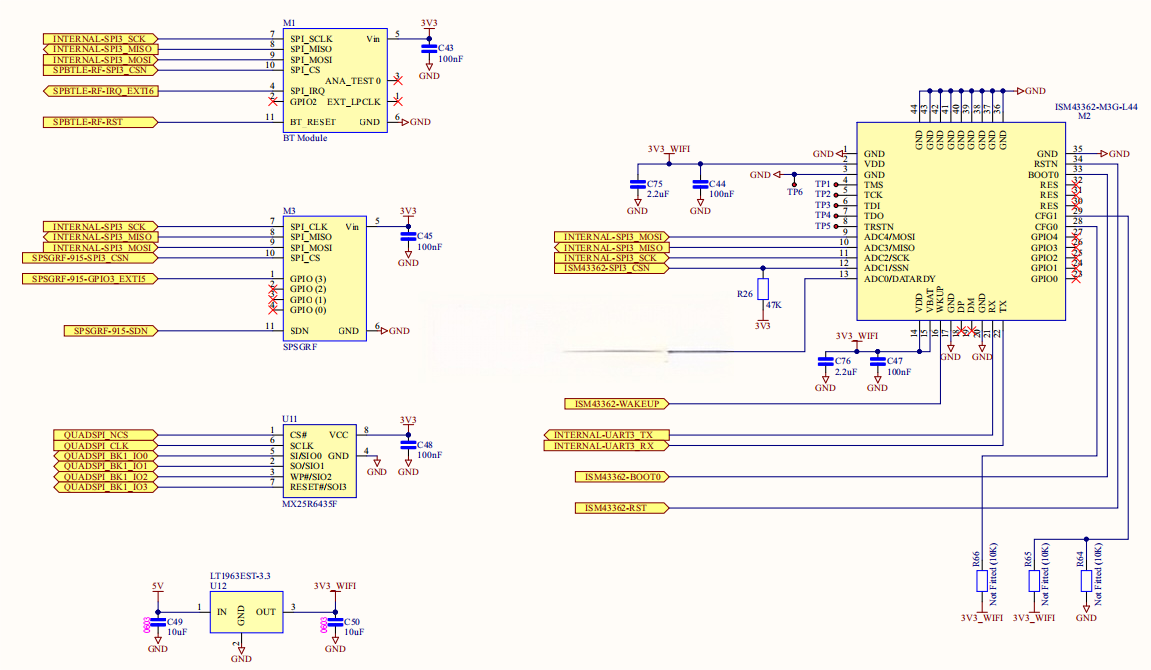

RF Module Schematic:

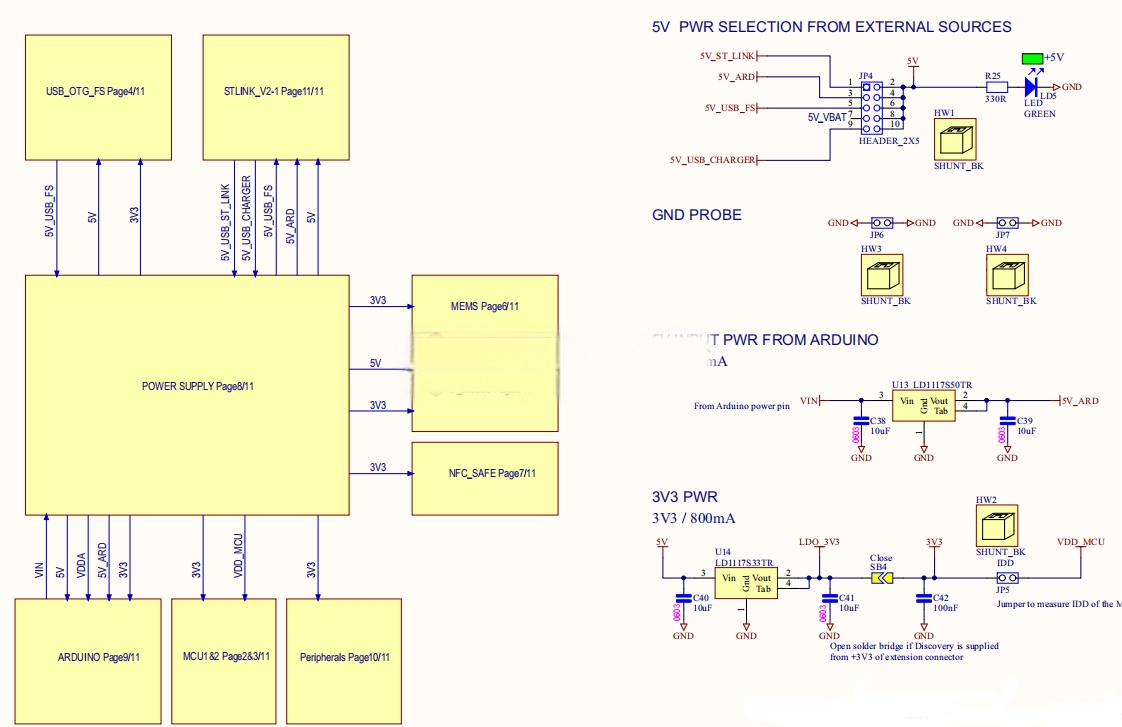

Power Supply Module Schematic:

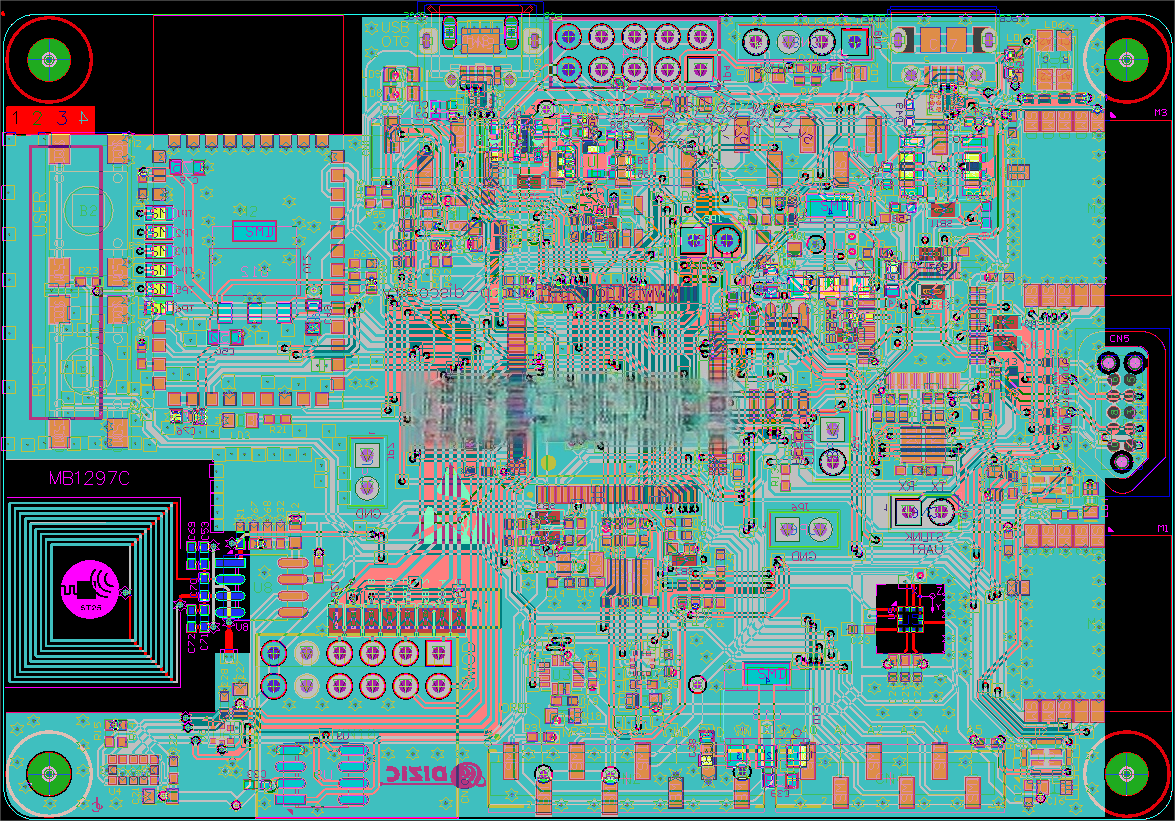

PCB Layout Diagram:

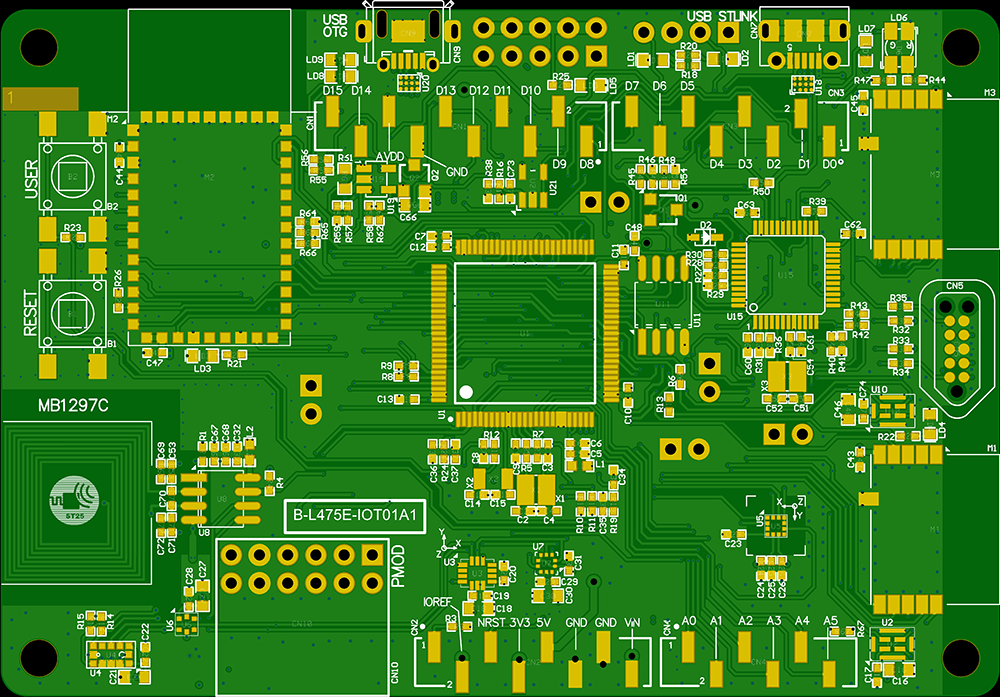

Physical PCB Image:

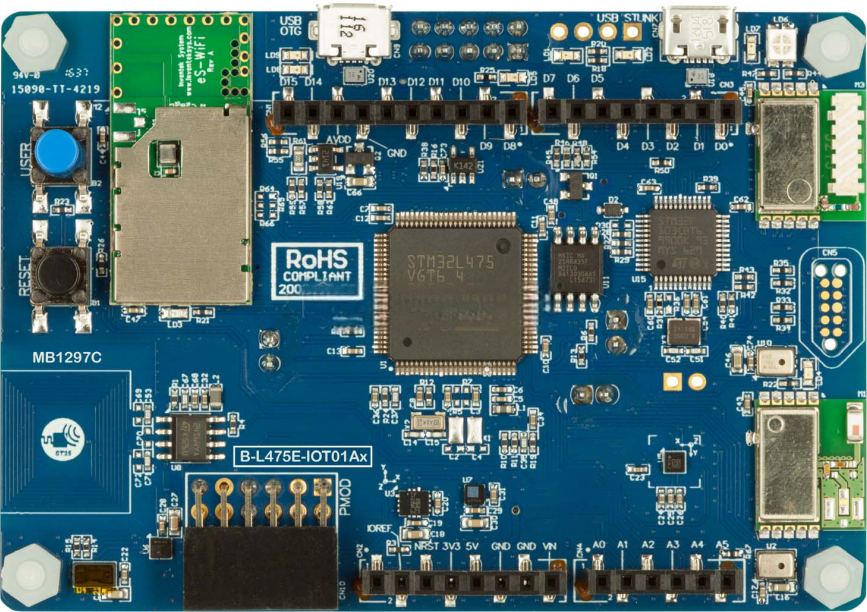

Actual Product Images
