STM32F103ZET6 four-wheel intelligent car controls the floor
Product Name: STM32F103ZET6 Four-Wheel Smart Car Control Board
Industry: Control Motherboard
Main Chips: STM32F103ZET6, VNH5019, MPU6050, CH340G
Board Type: Control Motherboard
Application Area: Infrared Remote Control Reception
Pin Count: 731
Layer Number: 2
Board Thickness: 1.0mm
Dimension: 150*110 mm
Line Width/Spacing: 10/6mil
| Product Name | STM32F103ZET6 Four-Wheel Smart Car Control Board |
| Industry | Control Motherboard |
| Main Chips | STM32F103ZET6, VNH5019, MPU6050, CH340G |
| Board Type | Control Motherboard |
| Application Area | Infrared Remote Control Reception |
| Pin Count | 731 |
| Layer Number | 2 |
| Board Thickness | 1.0mm |
| Dimension | 150*110 mm |
| Line Width/Spacing | 10/6mil |
Design Challenges:

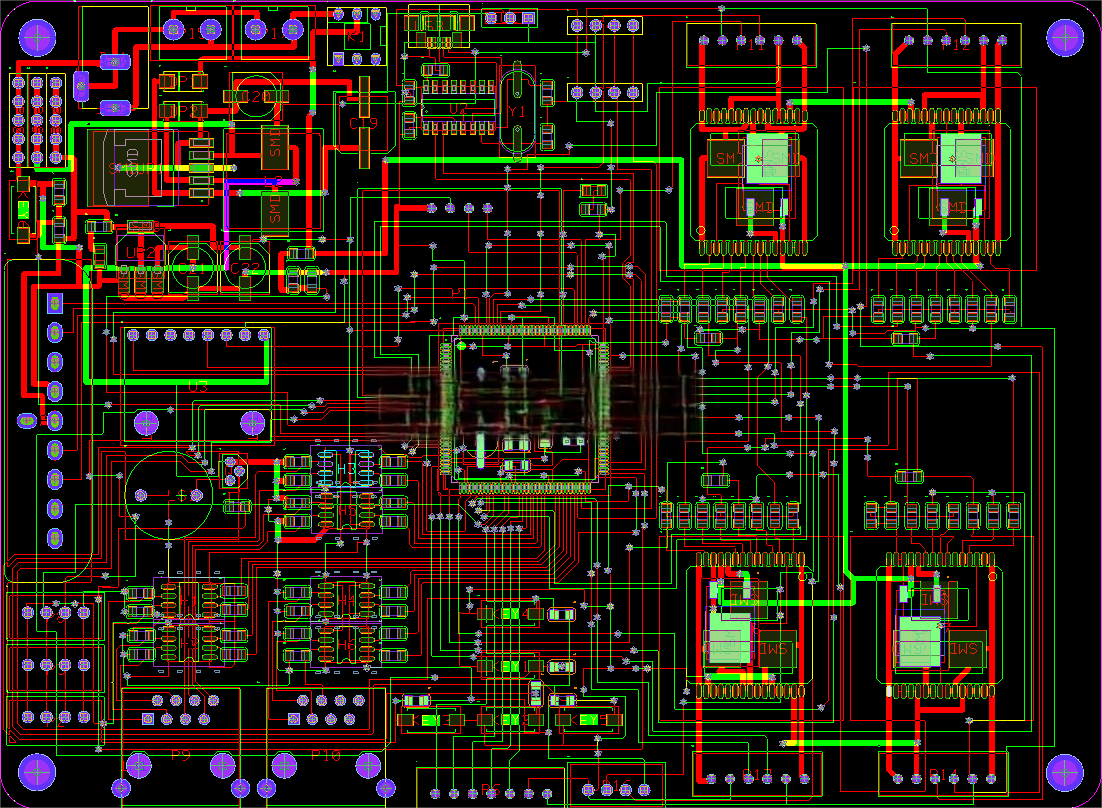

Layout Full Display
PCB Simulation Image:
